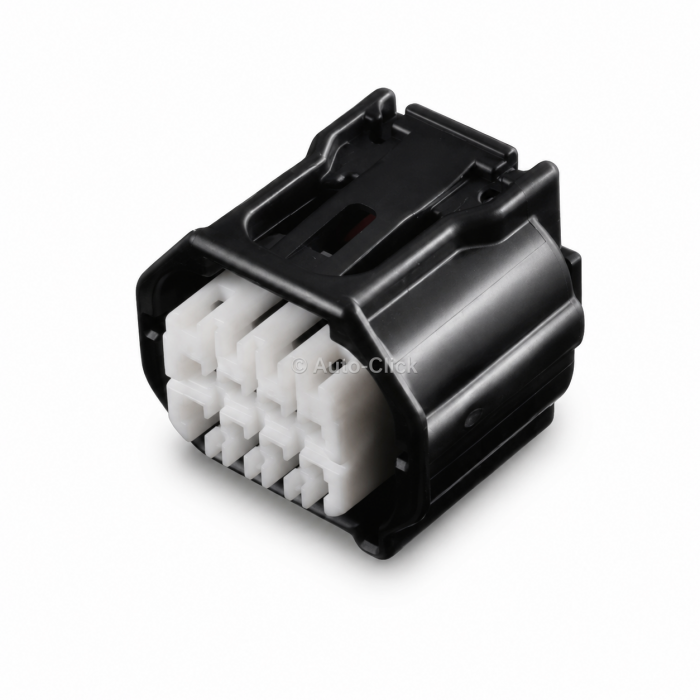

The Component: Genuine Sumitomo high-performance sealed female socket connector plug housing. TS Sealed Series taxonomy / 8-position dual-row matrix female casing / Standard Keying Profile (Black with White Internal Front Holder / Premium PBT / Sealed Waterproof / 2x4 Grid Configuration / Female Inline Waterproof Plug / Component Variant Alias: 6189-7800 / Global Order Reference: 61897800).

Applications & Fitment: Engineered as a premium, original equipment (OE) wire-to-device or wire-to-wire waterproof connection plug designed explicitly for harsh, high-exposure vehicle environments. This 8-pin female multi-row terminal socket block is a highly utilized wiring harness staple across modern Japanese passenger car and motorcycle platforms—frequently deployed in mid-density automotive circuits including accelerator pedal position sensors, complex headlight assembly arrays, body control module sensor sub-junctions, and electronic throttle bodies. It features a robust top-mounted mechanical locking thumb latch that drops securely over the mating male housing's locking ramp, establishing a high-retention hold resilient to extreme multi-axis engine vibration and structural road harmonics. Engineered to conform to demanding international automotive environmental guidelines, its internal silicone perimeter rubber seal forms an absolute barrier against high-pressure moisture ingress, salt spray, road dust, and under-hood fluid misting. Highly vulnerable to thumb latch hinge fracture if field service technicians attempt forced disassembly without cleanly depressing the primary locking handle.

Technical Attributes:

- Manufacturer Part Number: 6189-7800 / 61897800 (Brand: Sumitomo Wiring Systems / Genuine Factory Automotive Class)

- Product Series Taxonomy: TS Sealed Series Interconnect Family

- Configuration: 8-Position / 8-Way Female Socket Plug, Dual-Row 2x4 Matrix Layout

- Physical Dimensions: 25.30mm Width x 21.90mm Length x 20.40mm Height structural block footprint

- Contact System Terminal Envelope: Custom-engineered to shield standard 0.64mm nominal blade width clean-body female micro-crimp sockets (.025 series)

- Connector Style: Socket Housing for Female Contacts (Free-Hanging Inline or Exterior Module Interface Plug)

- Fastening & Locking Architecture: Features an integrated top-mounted mechanical thumb latch arm structure

- Secondary Locking System: Equipped with a pre-assembled internal white front retainer plate (Terminal Position Assurance) to guarantee zero terminal back-out under loom harness pull stress

- Base Structural Compound: Premium Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, dimensional accuracy, and impact toughness

- Color Profile: Factory Standard Jet Black housing block outer shell with crisp white internal front-loading alignment matrix

- Environmental Sealing Level: High-performance waterproof and dustproof isolation certified for engine bay and exterior chassis placement

- Low-Voltage Circuit Threshold: Engineered for standard vehicle electronic low-voltage networks operating below 32V DC continuous

- Operational Thermal Window: Severe-duty engine bay and chassis layout envelope certified to maintain structural flexibility from -40°C up to +125°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept standard Sumitomo TS sealed series female crimp socket pins (requires individual single-wire cavity seals to maintain full IP-rated sealing)

- Mating Counterpart Interface: Pairs seamlessly inline as the direct female partner to matching 8-way male Sumitomo TS sealed harness connectors or device headers (including matching 8-way male component layout patterns)

- Commercial Access: Available as loose individual housing shells or wholesale bulk packaging options. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
