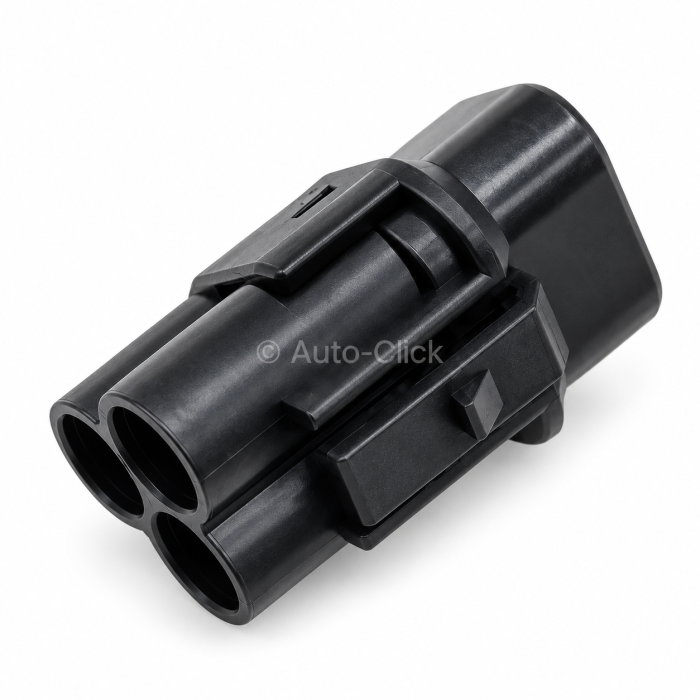

Sumitomo 6180-3242 MT 090 3-Way Female Sealed Connector Housing

The Component: Genuine Sumitomo OEM 3-position female socket connector housing / MT 090 Sealed Series 2.3mm (090 class) waterproof automotive and powersports inline connector socket / Integrated silicone wire seal retention housing with positive primary locking latch mechanism / Molded from premium Polybutylene Terephthalate (PBT) resin / Component Part Number: 6180-3242 / Alternate Identifiers: Sumitomo 6180-3242 / 61803242 / MT090-3S / MT 090 3-Way Female Sealed Black / 2.3mm 3-Pin Female Inline Housing / Sumitomo MT 3-Way Female Socket 6180-3242.

Applications & Fitment: High-reliability waterproof female electrical socket connector housing engineered for cable-to-cable inline wiring harnesses, powersports sub-assemblies, motorcycle accessory circuits (e.g., KTM, Husqvarna, Honda, Yamaha), speed sensors, and engine management looms. Designed specifically to accept three 2.3mm (090 series) female socket terminals (e.g., Sumitomo 1500-0110 or 8240-4828) along with corresponding MT 090 silicone single wire seals (e.g., 7160-8234). Widely specified in automotive and motorcycle harness builds for CAN bus feeds, auxiliary power take-offs, fuel injection leads, and handlebar controls. Mates directly with the corresponding 3-way male inline pin connector housing (Sumitomo 6187-3232 / MT090-3P). Engineered to withstand severe engine compartment and powersports vibration, direct water spray, automotive fuels, and harsh environmental exposure (-40 to 125 degrees Celsius). Essential stock for auto-electricians, motorcycle technicians, motorsport harness builders, and trade distributors.

Technical Attributes:

- OEM Part Number: 6180-3242 / 61803242 (Manufacturer: Sumitomo Wiring Systems)

- Product Component Classification: 2.3mm (090 Class) Female Socket Terminal Connector Housing

- Connector Family Series: Sumitomo MT 090 Sealed Series

- Application Profile: Powersports & Automotive Inline Cable-to-Cable & Sensor Interface Waterproof Connections

- Connection Type: Wire-to-Wire Female Socket Housing Plug

- Total Position Count: 3-Way / 3-Pin Female Plug (3 Poles)

- Compatible Terminal Blade Width: 2.30 mm (.090 Series Class)

- Terminal System Compatibility: Accepts Sumitomo MT 090 series female socket crimp contacts (e.g., 1500-0106, 1500-0110, 8240-4828)

- Wire Seal System Compatibility: Accepts MT 090 silicone single wire seals (e.g., 7160-8234) or cavity dummy plugs

- Directly Mating Counterparts: Sumitomo 6187-3232 (MT 090 3-Way Male Inline Connector Housing / Black)

- Environmental Sealing Capability: Fully Sealed / Waterproof (IP67 Grade Environmental Protection via internal silicone gasket and wire seals)

- Structural Material Base: Premium Polybutylene Terephthalate (PBT) Plastic

- Color Profile: Black Body Housing

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 3-way female housing assembly. Female socket crimp terminals, silicone wire seals, and mating male housings sold separately as individual piece parts or as part of a complete repair kit depending on stock configuration. Multi-tier trade volume discounts apply automatically at checkout.
