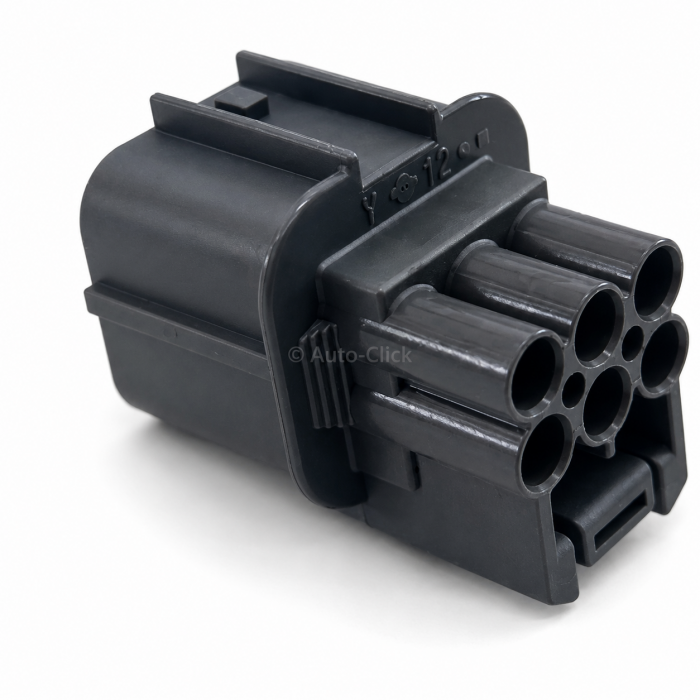

Sumitomo 6181-0074 6-Way Male HW Sealed Series Connector

The Component: Genuine Sumitomo high-performance sealed male plug connector housing. HW Sealed Series taxonomy / 6-position dual-row male casing / Standard Keying Profile (Dark Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof / 2x3 Grid Layout / Male Inline Harness Plug / Component Variant Alias: 6181-0074 / Global Order Reference: 61810074).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) inline wire-to-wire waterproof connection plug designed explicitly for harsh under-hood environmental conditions, chassis harness extensions, and heavy-duty drivetrain routing. This 6-pin male terminal pin housing is an industry-standard wiring loom repair and harness reconstruction staple across premium Japanese automotive platforms and industrial systems—most prominently integrated within Toyota, Lexus, Honda, Mazda, and Nissan factory wiring architectures. It is standardly deployed across multiple high-vibration engine bay and chassis runs as the direct mating inline partner to the 6189-0133 female connector housing, commonly supporting electronic throttle bodies, multi-channel gearbox control runs, or cabin-to-engine bay passthrough bundles. It features a robust exterior locking shroud with integrated latch ramps that mate seamlessly with the female connector's mechanical thumb clip, establishing a secure, low-tolerance retention hold resilient to continuous engine thermal cycling and intense multi-axis structural harmonics. Engineered to conform to rigid tier-1 automotive manufacturing validation guidelines, its internal dual-row 2x3 cavities accept high-reliability 2.3mm (.090 inch) nominal blade width Sumitomo HW series male pin terminals, utilizing independent wire cavity seals to establish an absolute, waterproof IP-rated barrier against high-pressure washdowns, road salt spray, and aggressive track dust penetration. Highly vulnerable to external locking ramp shearing or rear seal neck cracking over high mileage due to continuous exposure to engine bay heat and road grime, making it a critical service item for professional auto-electrical workshops and harness restorers.

Technical Attributes:

- Manufacturer Part Number: 6181-0074 / 61810074 (Brand: Sumitomo / Japan Genuine Component Class)

- Product Series Taxonomy: HW Sealed Series Interconnect Family

- Configuration: 6-Position / 6-Way Male Housing Plug, Dual-Row 2x3 Grid Matrix Layout

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.3mm (090 series) nominal blade width Sumitomo male pin terminals

- Connector Style: Male Tab Housing (Free-Hanging Inline Wire Loom Mating Interface)

- Fastening & Locking Architecture: Features an external locking ramp shroud to engage firmly with female mechanical thumb latches, paired with compatibility for front-loading TPA retainers

- Environmental Sealing Level: High-performance waterproof and dustproof isolation when paired with compatible single-wire cavity seals (SWS) and mating connector matrix

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, rigid dimensional memory, and robust structural impact toughness

- Color Profile: Factory Standard Dark Gray housing assembly block with a pre-installed white internal front nose retainer guide

- Circuit Rating Threshold: Form-fitted for standard low-voltage signaling, multi-core sensory runs, and medium-ampacity power delivery lines operating below 32V DC continuous

- Operational Thermal Window: Severe-duty engine block and chassis route layout certified to maintain material structural integrity from -40°C up to +120°C

- Target Male Terminal Contacts (Not Included): Precision optimized to accept genuine Sumitomo 2.3mm (090) HW series male crimp pins (requires individual cavity single-wire rubber seals to preserve full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire looms as the direct male partner to matching 6-way female Sumitomo HW series connector housings (such as Sumitomo part number 6189-0133)

- Commercial Access: Available as loose individual workshop repair pieces, bulk trade packaging bags, or master distributor inventory runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
