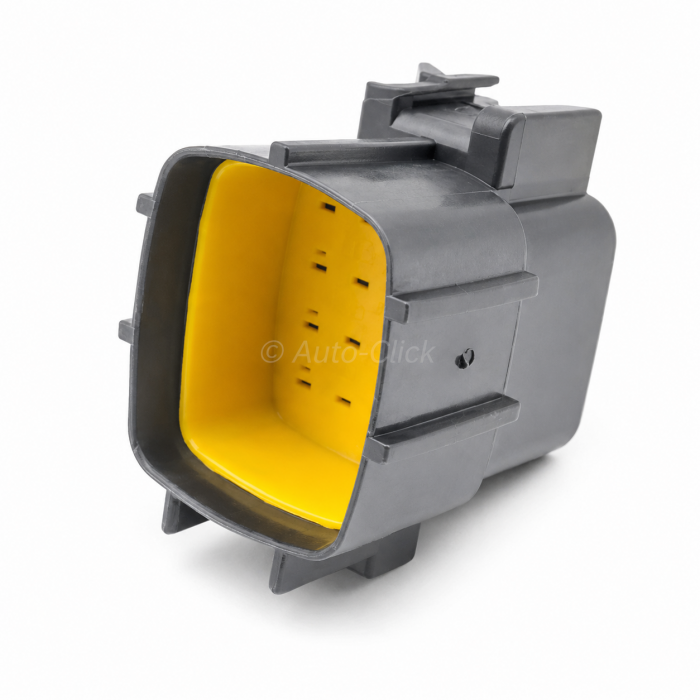

TE Connectivity 368050-1 Econoseal J 16-Way Male Cap

Terminals and seals are not included

The Component: Genuine TE Connectivity 368050-1 (Part Alias: E-S MK-2(+) 16P CAP HSG) 16-way male automotive unsealed connector cap housing shroud. Econoseal J Series Mark II(+) 16-position 4-row male tab inline casing (Black / PBT / Unsealed / Cable Mount / Mating Tab Width 1.8mm).

Applications & Fitment: Designed as a primary factory original equipment (OE) high-density inline connection solution for low-voltage signal paths, auxiliary body wiring drops, and cabin-run control networks. Extensively specified across prominent automotive and motorcycle manufacturing grids as a dependable wire-to-wire coupling link. Engineered specifically to organize complex multi-line logic configurations within a compact footprint while offering positive alignment safeguards to prevent mis-mating and contact damage in tight routing environments. Highly vulnerable to integrated alignment tracking channel distortion if forced blindly against misaligned female socket plug partners during field workshop troubleshooting, or terminal retention wall fracturing if pins are manipulated using non-standard extraction tools.

Technical Attributes:

- Manufacturer Part Number: 368050-1 (Brand: TE Connectivity / AMP Genuine Class)

- Product Series Taxonomy: Econoseal J Series Mark II(+) / 1.8mm Sizing Footprint Class

- Configuration: 16-Position / 16-Way Male Tab Cap Housing, High-Density 4-Row 4x4 Grid Matrix

- Connector Style: Cap Housing for Male Tab Contacts (Inline Free-Hanging Shroud Shroud Profile)

- Connection Layout Type: Wire-to-Wire / Cable-to-Cable Interconnect Channel

- Mating Tab Acceptance Footprint: 1.80mm (.071 inch) nominal contact tab width layout path

- Mating Center-Line Pitch: 4.80mm horizontal cavity alignment spacing grid

- Row-to-Row Spacing: 5.60mm vertical layout track alignment

- Base Structural Compound: Premium High-Grade Polybutylene Terephthalate (PBT) resin

- Color Profile: Factory Solid Black Shroud

- Nominal Component Weight: 10.42 grams

- Mechanical Keying Profile: Polarized Keyed Alignment Layout

- Primary Locking Feature: Molded into the housing structure (Locks directly on the terminal lance system)

- Environmental Sealing Level: Unsealed / Protected cabin interior, trunk, or shielded chassis enclosure design classification

- Nominal Voltage Infrastructure: Optimized for standard 12V DC vehicle electrical architectures

- Operational Thermal Window: Premium wide-range continuous thermal stability certified from -30°C to +105°C

- Target Male Terminal Contacts (Not Included): Fits standard TE Econoseal J Mark II .070 series male tab crimp contacts, including 24-20 AWG runs (such as 173600-1 or 171631-1) or 20-16 AWG larger primary wire paths (such as 173706-1 or 171661-1)

- Required Secondary Locking Plates (Not Included): Must be paired with the matching 16-way secondary lock double-plate cap (such as 368051-1) to ensure definitive terminal positioning assurance (TPA)

- Mating Counterpart Plug Housing: Pairs seamlessly inline as the direct male partner to TE Connectivity Econoseal J Mark II series 16-way female socket inline plug housings (such as the 368047-1 receptacle plug and its 368049-1 TPA plate)

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent tuning garages, loom remanufacturers, and trade auto-electrical stockists.
