6189-0715
Our part16-AC020 RoHSComplete your connector
Matching terminals, seals and mating parts for this housing.
Terminals 1
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Connectors and housings 1
Related housings in the same family or pin count.
Price isn't everything
This is a genuine SUMITOMO part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
Terminals and seals are included

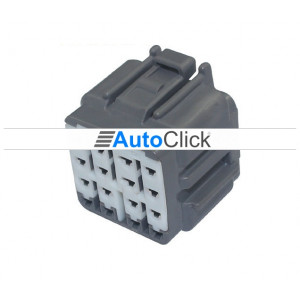

16 Way Automotive Connector
6189-0715
DL sealed series
Housing Inline
2.3mm (090)
Sealed/Unsealed sealed
Male/Female F
Way 16
Mating parts 6188-0495 (DL sealed series)
Materials PBT or Low water absorption Nylon
Color Dark Gray
Contact resistance
Initial
3mΩ Max.
after durability tests
10mΩ Max.
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
Seal
Initial
49.0kPa Min.
after durability tests
29.4kPa Min.
