7283-5533-40
Auto Click™ part10-AC054 RoHSCompatible terminals, seals & mating parts
Matched to this housing. Order any quantity, or request a volume quote for 1,000+.
Terminals 1
Select the plating and wire size for the cavity. Listed terminals are alternatives for this housing.
Connectors and housings 1
Related housings in the same family or pin count.
Price isn't everything
This is a genuine YAZAKI part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
Product description
Terminals are included

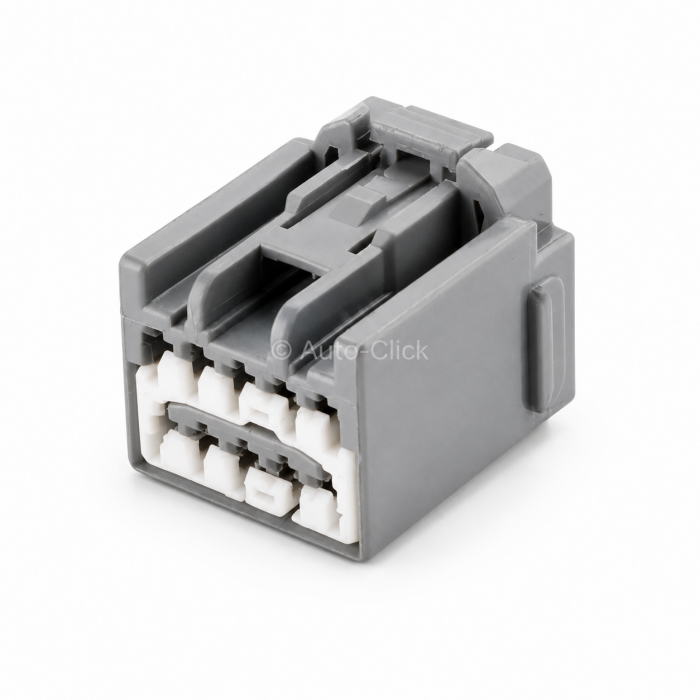

10 Way Automotive Connector
Classified Parts Housing
Family YES/YESC Kaizen Connectors
Type Header
Yazaki Part Number 7283-5533-40
Connection Type Wire to Wire
Wire to Device
Unsealed/Sealed Unsealed
Male/Female Female
Number of Poles 10
Tab Width mm(inches) 1.5(060)
Material Heat-resistance Nylon
Plating -
Color Light Gray
Rating -
Mating Part Numbers 7382-5884-40 / 7382-6379-30
Product Specification
Allowable Current(Ref.) 15A(Ref)
Low Level Contact Resistance 10milli ohm Max.(Initial)
Insulation Resistance 20Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range*9 -40 to 100deg.C
