6189-0555

Terminals and seals are included

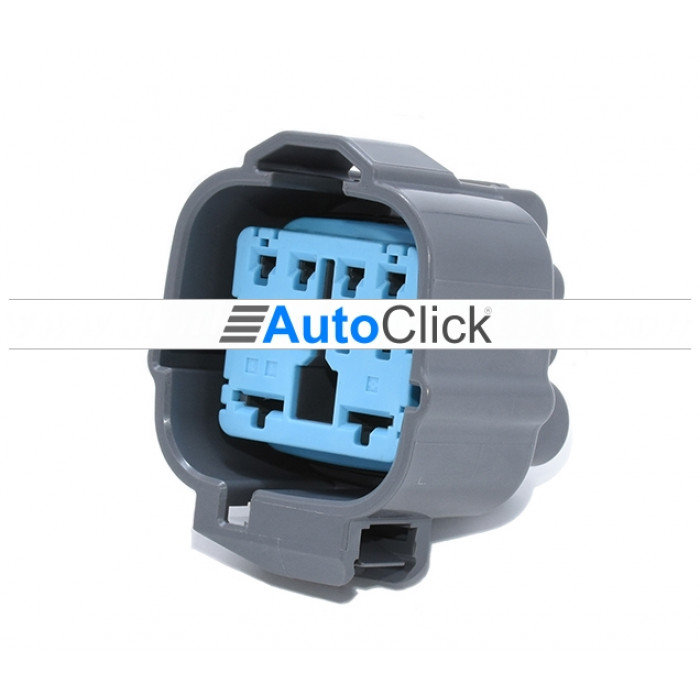

10 Way Automotive Connector

We ship Worldwide daily and you can buy online safely using PayPal

We are the UK's largest specialist stockist of Automotive Connectors, and we offer low cost shipping to all Countries, fast and safe.

6189-0555

HX sealed series

Housing Inline - Hybrid Bracket fixation

2.3/4.8mm(090/187)

Sealed/Unsealed sealed

Male/Female F

Way

10

8(2.3mm) + 2(4.8mm)

Mating parts 6181-0381(HX sealed series)

Materials PBT

Color Dark Gray

Contact resistance

Initial

3mΩ Max.

after durability tests

6mΩ Max.

Leak current 100μA Max.

Insulation resistance 100MΩ Min.

Seal

Initial

98kPa Min.

after durability tests

49kPa Min.
