Yazaki 7228-6030 3-Way Male TLC Unsealed Connector

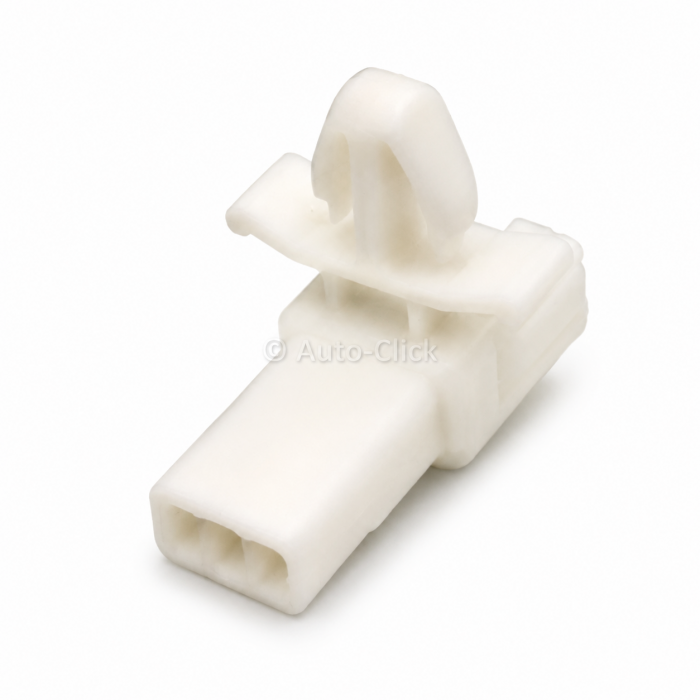

The Component: Genuine Yazaki high-performance unsealed male tab connector plug housing. TLC Series Interconnect taxonomy / 3-position single-row linear male casing / Standard Keying Profile (Natural White / Premium PBT / Unsealed Non-Waterproof / 1x3 Grid Configuration / Male Inline Interior Loom Plug / Component Variant Alias: 7228-6030 / Global Order Reference: 72286030).

Applications & Fitment: Engineered as a premium, low-profile original equipment (OE) wire-to-wire signal connection plug designed explicitly for protected, non-submerged interior cabin vehicle environments. This 3-pin male micro-terminal tab block is a classic wiring harness staple across Japanese passenger vehicle frameworks—frequently integrated behind interior panels for overhead console map lights, door mirror control sub-assemblies, ambient accent lighting runs, and interior courtesy lamp runs. It features an integrated mechanical locking ramp built onto the exterior shroud casing body that ensures clean, positive retention with the corresponding female wiring loom connector. Engineered for cabin weight-reduction and ultra-compact interior packaging, its unsealed design provides precise male terminal blade alignment without the depth friction of thick silicone perimeter rubber seals. Highly vulnerable to exterior locking ramp fracture or male alignment shroud warping if field service technicians attempt forced maintenance extraction using broad-tipped tools instead of gently releasing the primary locking arm.

Technical Attributes:

- Manufacturer Part Number: 7228-6030 / 72286030 (Brand: Yazaki / Genuine Factory Automotive Class)

- Product Series Taxonomy: TLC Series Connectors

- Configuration: 3-Position / 3-Way Male Plug, Single-Row 1x3 Linear Layout

- Contact System Terminal Envelope: Custom-engineered to accept ultra-compact 1.0mm nominal tab width clean-body male tab crimp pins (.040 series)

- Centerline Terminal Pitch: High-density linear pitch packaging optimized for multi-function cabin accessories

- Connector Style: Male Plug Housing for Male Tab Contacts (Free-Hanging Inline Harness Interface Plug)

- Fastening & Locking Architecture: Features an integrated external mechanical locking ramp structure

- Base Structural Compound: Premium Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, dimensional accuracy, and structural toughness

- Color Profile: Factory Standard Natural Off-White housing assembly block

- Environmental Sealing Level: Unsealed / Non-waterproof (Strictly rated for clean, dry interior cabin applications; not suitable for under-hood engine bay placement)

- Low-Voltage Circuit Threshold: Engineered for standard vehicle electronic low-voltage signaling networks operating below 32V DC continuous

- Operational Thermal Window: Interior cabin and instrument panel envelope certified to maintain structural flexibility from -40°C up to +120°C

- Target Male Terminal Contacts (Not Included): Precision optimized to accept standard Yazaki TLC series male crimp tab pins (such as part number 7113-2331 depending on wire gauge)

- Mating Counterpart Interface: Pairs seamlessly inline as the direct male partner to matching 3-way female Yazaki TLC series harness connectors (including corresponding 7129 series female socket housings)

- Commercial Access: Available as loose individual housing shells or wholesale bulk packaging layout options. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
