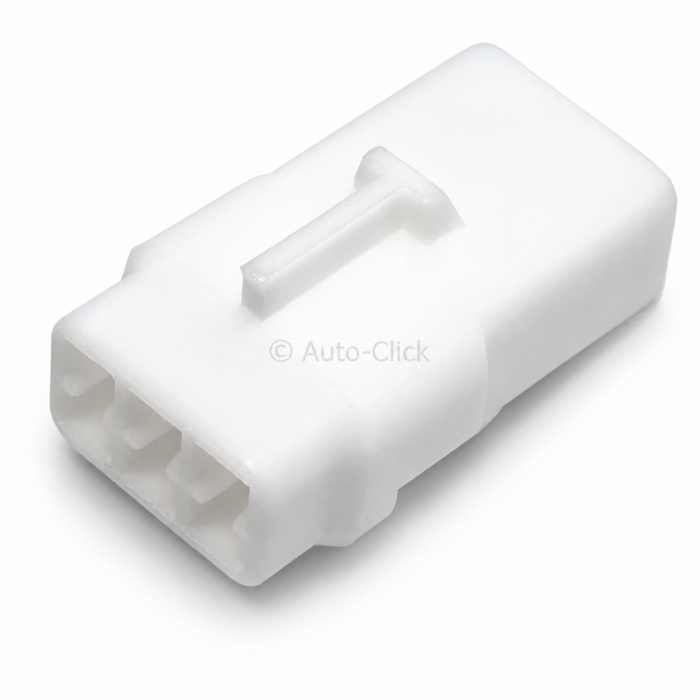

Yazaki 7129-6030 3-Way Female TLC Unsealed Connector

The Component: Genuine Yazaki high-performance unsealed female socket connector plug housing. TLC Series Interconnect taxonomy / 3-position single-row linear female casing / Standard Keying Profile (Natural White / Premium PBT / Unsealed Non-Waterproof / 1x3 Grid Configuration / Female Inline Interior Loom Plug / Component Variant Alias: 7129-6030 / Global Order Reference: 71296030).

Applications & Fitment: Engineered as a premium, low-profile original equipment (OE) wire-to-wire signal connection plug designed explicitly for protected, non-submerged interior cabin vehicle environments. This 3-pin female micro-terminal socket block is a classic wiring harness staple across Japanese passenger vehicle frameworks—frequently integrated behind interior panels for overhead console map lights, door mirror control sub-assemblies, ambient accent lighting runs, and interior courtesy lamp runs. It features an integrated top-mounted mechanical thumb latch arm that clicks securely over the mating male housing's locking ramp to guarantee low-tolerance retention and prevent loose connections caused by cabin vibrations. Engineered for cabin weight-reduction and ultra-compact interior packaging, its unsealed design provides precise terminal alignment without the depth friction of thick silicone perimeter rubber seals. Highly vulnerable to top latch arm fracture or internal guide rail warping if field service technicians attempt forced maintenance extraction using broad-tipped tools instead of gently depressing the primary locking lever.

Technical Attributes:

- Manufacturer Part Number: 7129-6030 / 71296030 (Brand: Yazaki / Genuine Factory Automotive Class)

- Product Series Taxonomy: TLC Series Connectors

- Configuration: 3-Position / 3-Way Female Plug, Single-Row 1x3 Linear Layout

- Contact System Terminal Envelope: Custom-engineered to accept ultra-compact 1.0mm nominal tab width clean-body female crimp sockets (.040 series)

- Centerline Terminal Pitch: High-density linear pitch packaging optimized for multi-function cabin accessories

- Connector Style: Female Plug Housing for Female Socket Contacts (Free-Hanging Inline Harness Interface Plug)

- Fastening & Locking Architecture: Features an integrated top-mounted mechanical thumb latch arm

- Base Structural Compound: Premium Polybutylene Terephthalate (PBT) engineering polymer for maximum thermal tracking resistance, dimensional accuracy, and structural toughness

- Color Profile: Factory Standard Natural Off-White housing assembly block

- Environmental Sealing Level: Unsealed / Non-waterproof (Strictly rated for clean, dry interior cabin applications; not suitable for under-hood engine bay placement)

- Low-Voltage Circuit Threshold: Engineered for standard vehicle electronic low-voltage signaling networks operating below 32V DC continuous

- Operational Thermal Window: Interior cabin and instrument panel envelope certified to maintain structural flexibility from -40°C up to +120°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept standard Yazaki TLC series female crimp socket pins

- Mating Counterpart Interface: Pairs seamlessly inline as the direct female partner to matching 3-way male Yazaki TLC series harness connectors (including corresponding matching male tab component 7228-6030)

- Commercial Access: Available as loose individual housing shells or wholesale bulk packaging layout options. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
