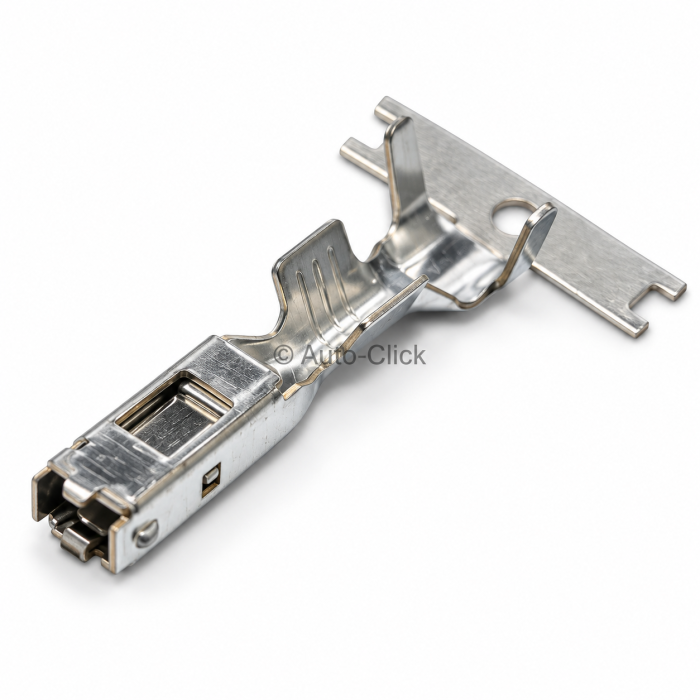

Yazaki 7116-1530 E-Type Female Terminal 0.3-0.85mm² Tin

Yazaki 7116-1530 E-Type Female Terminal 0.3-0.85mm² Tin

The Component: Genuine Yazaki OEM E-Type 2.3mm (090 class) female crimp socket terminal / 090 II Series female contact receptacle / Designed for 0.30mm² to 0.85mm² wire cross-section / Premium high-conductivity copper alloy base material with durable tin-plated finish / Open-barrel conductor and insulation crimp ears engineered for single-wire seal (SWS) assembly / Component Part Number: 7116-1530 / Alternate OEM Identifiers: Yazaki 7116-1530 / 71161530 / Toyota 82998-12440 repair wire cross / 090 II Female Terminal / E-Type Female Crimp Contact / 2.3mm Receptacle Terminal 0.3-0.85mm².

Applications & Fitment: High-reliability female electrical crimp socket terminal engineered for engine compartment, chassis, lighting, and sensor sub-harnesses across Toyota, Lexus, Nissan, Honda, Mazda, Mitsubishi, and Japanese OEM vehicle platforms. Designed specifically for insertion into Yazaki 090 II / E-Type sealed female connector housings. Accepts thin-wall automotive wire in the 0.30 mm² to 0.85 mm² (AWG 22–18) range alongside standard 2.3mm individual silicone wire cavity seals. Widely specified for coolant temperature sensors, ABS wheel speed sensors, fog lamps, horn assemblies, washer pumps, and relay block junctions requiring low contact resistance and IP67 weatherproofing integrity. Essential stock for auto-electricians, Japanese vehicle specialists, harness repair technicians, and trade distributors.

Technical Attributes:

- OEM Part Number: 7116-1530 / 71161530 (Manufacturer: Yazaki)

- Product Component Classification: 2.3mm (090 Class) Female Socket Crimp Contact Terminal

- Terminal Family Series: Yazaki E-Type / 090 II Series

- Gender & Contact Type: Female Socket / Receptacle Contact

- Compatible Wire Cross-Section Range: 0.30 mm² to 0.85 mm² (AVS / AVSS / FLRY-B Automotive Cable)

- Compatible Wire Gauge Equivalent: AWG 22 to AWG 18

- Contact Mating Tab Width: Mates with 2.30 mm (090 Series) Male Blades / Tabs

- Base Metal Material: High-Conductivity Copper Alloy

- Terminal Surface Plating: Bright Tin Plated

- Sealing System Compatibility: Engineered for Single-Wire Seal (SWS) Waterproof Applications

- Primary Locking System: Integrated External Locking Lances

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as individual loose-piece female crimp terminals. Multi-tier trade volume discounts apply automatically at checkout.
