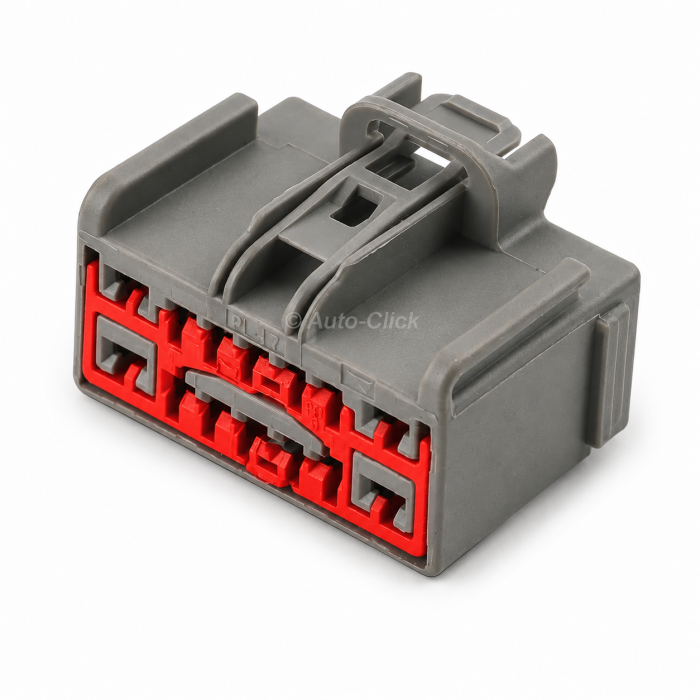

7283-6447-40 YES Series 14-Way Hybrid Female Housing
· YAZAKI · Our Part Number: 14-AC052 ·| Quantity | Unit Price | Saving |
|---|---|---|
| 10+ | £2.00 | |
| 100+ | £1.20 |
Yazaki 7283-6447-40 YES Series 14-Way Hybrid Female Plug
Terminals are not included
The Component: Genuine Yazaki 7283-6447-40 14-way automotive unsealed hybrid connector housing plug. YES / YESC Kaizen Series 14-position multi-row female socket receptacle casing (Light Gray / PBT / Unsealed / Inline Cable Mount / Hybrid 1.5mm & 2.8mm Blade Matching / Multi-Contact Grid).
Applications & Fitment: Designed as a high-density factory original equipment (OE) wiring harness connection solution for sophisticated automotive cabin electronics, primary dashboard instrumentation loops, and multi-function steering column modules. Notably specified across global vehicle manufacturing platforms as the definitive female plug interface for modern vehicle audio control systems, main premium infotainment networks, master console switch drops, and body control logic segments (directly matching prominent cross-references, including the Ford/Motorcraft service connection kit WPT-1140 / 3U2Z-14S411-ZZB). Engineered specifically to integrate low-current data telemetry and high-capacity electrical paths within a single unsealed casing shell. Highly vulnerable to primary overhead mechanical locking arm snapping if pried roughly when brittle from cold ambient cycles, or internal alignment track deformation if back-probed carelessly during field electronic workshop diagnostics.
Technical Attributes:
- Manufacturer Part Number: 7283-6447-40 (Brand: Yazaki Connectors / Japan Genuine Class)
- Product Series Taxonomy: YES / YESC Kaizen Series / Hybrid Non-Sealed Interconnect Group
- Configuration: 14-Position / 14-Way Female Receptacle Housing, Multi-Row High-Density Matrix Layout
- Hybrid Contact Sizing Cavity Allocation: Built to accept a mixed terminal layout comprising 1.5mm width micro female sockets AND 2.8mm width flat female power sockets
- Connector Style: Plug Housing for Female Socket Contacts (Inline Free-Hanging Profile)
- Connection Layout Type: Wire-to-Wire or Wire-to-Device Interconnect Channel
- Base Structural Compound: Premium High-Grade Polybutylene Terephthalate (PBT) engineering resin
- Color Profile: Factory Solid Light Gray
- Fastening & Locking Architecture: Integrated robust heavy-duty overhead external mechanical thumb-latch locking mechanism
- Environmental Sealing Level: Unsealed / Protected cabin interior and dashboard enclosure design classification
- Circuit Performance Thresholds: Low-voltage electrical logic and medium-power infrastructure handling yielding an exceptionally clean initial contact path restriction capped at a 10.0mΩ Maximum baseline layout restriction
- Insulation Isolation Efficiency: 20MΩ Minimum isolation grid tracking barrier measured at 500V DC
- Dielectric Potential Capacity: Withstands 1000V AC continuously across a 1-minute test window
- Operational Thermal Window: Premium continuous thermal stability rated from -40°C up to +100°C
- Target Female Terminal Contacts (Not Included): Fits standard Yazaki YES / YESC Kaizen series unsealed female box socket crimp terminals, including the 1.5mm micro lines (such as 7116-4103-02) and matching 2.8mm flat power tracks (such as 7116-4111-02 variants)
- Mating Counterpart Housing: Pairs seamlessly as the direct female partner to corresponding Yazaki YES unsealed series 14-way male pin layout caps (such as 7282-6447-40 inline cap receptacle) or specified device circuit board headers
