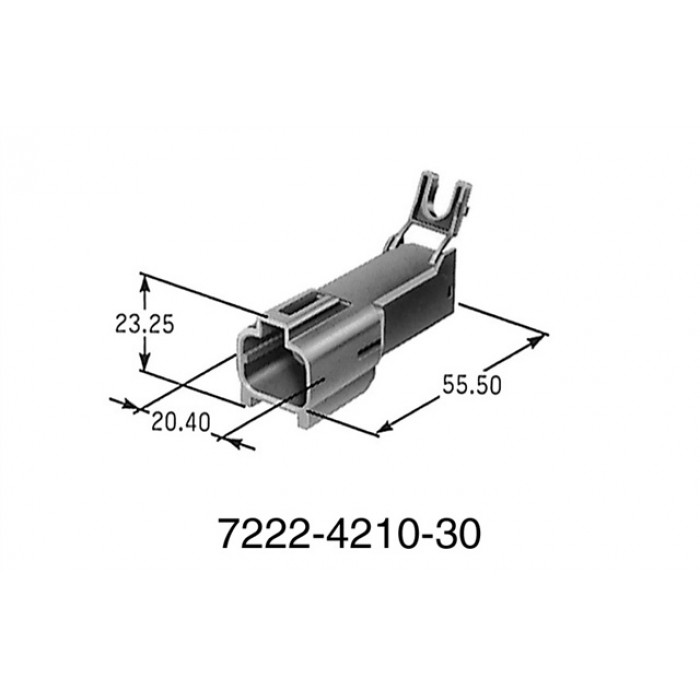

Original Yazaki 7222-4210-30

Terminals and seals are not included

Family 58 Connectors

Type Y Type

Yazaki Part Number 7222-4210-30

Connection Type Wire to Wire

Unsealed/Sealed Sealed

Male/Female Male

Number of Poles 1

Tab Width mm(inches) 9.5(375)

Material PBT

Plating -

Color Black

Rating -

Mating Part Numbers 7123-4210-30

Product Specification

Allowable Current(Ref.) 40A(Ref)

Low Level Contact Resistance 2milli ohm Max.(Initial)

Insulation Resistance 250Megohm Min.(at 500VDC)

Withstanding Voltage 1000V AC (1min.)

Temperature Range*9 -40 to 120deg.C
