7116-4618-02

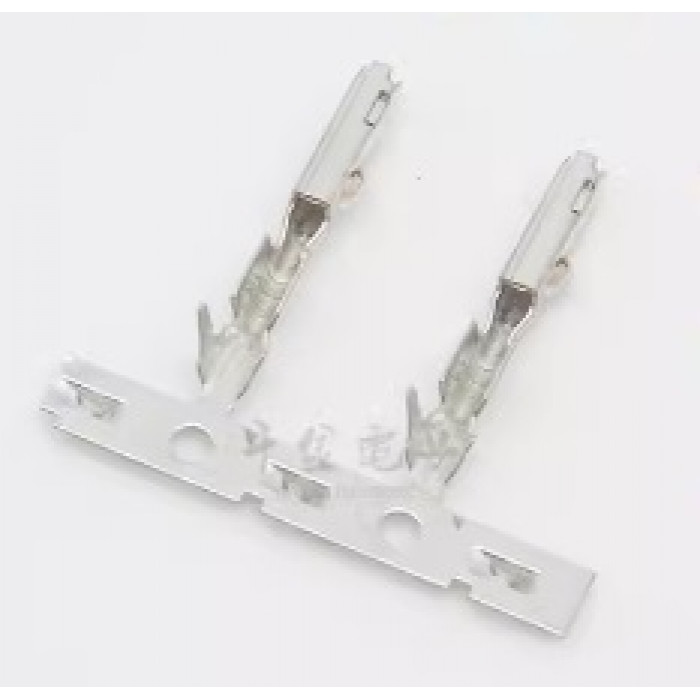

Original Yazaki 7116-4618-02

Classified Parts		Terminal
Family						YES/YESC Kaizen Connector 0.64X0.64
Replacement part number			Mating Part Numbers			7114-4618-02
Unsealed/Sealed		Sealed	Male/Female		Female
Tab size (mm)		0.64	Materials		COPPER ALLOY
Size (mm) (Outer shape of parts)	Length	14.00	Plating		Tin Plating
	Width	1.60
	Height	2.25
Electric current classification		VERY SMALL
Product standard No.
Handling manual No.

Product Specification

Allowable Current(Ref.)	6A(Ref)	Low-voltage low-currentresistance	20milli ohm Max.(Initial)
Insulation resistance	20Megohm Min.(at 500VDC)	Withstand voltage	1000V AC (1min.)
Temperature Range	-40 to 100deg.C

Application List of Installable Components

Installation possible part
Application wire (mm2)	Wire Type	－
	Size (Min)	0.30
	Size (Max)	0.50
	Wire seal
