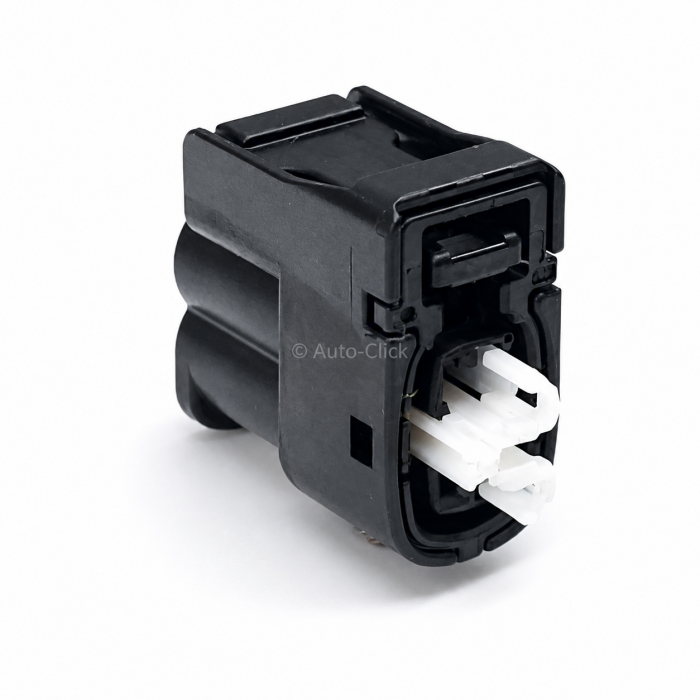

Yazaki 7283-8226-30 Toyota 90980-11246 2-Way Female Connector Housing

The Component: Genuine Yazaki OEM 2-position female socket connector kit / 2.3II (090II) Sealed Series waterproof automotive connector plug / Compact 1x2 single-row inline cavity layout / External top primary latching arm with integrated silicone weather seal and white front secondary terminal position assurance (TPA) locking wedge / Molded from premium, heat- and chemical-resistant Polybutylene Terephthalate (PBT) resin / Component Part Number: 7283-8226-30 / Alternate Identifiers: Yazaki 7283-8226-30 / Toyota 90980-11246 / 9098011246 / 2.3II 090II 2-Pin Female Plug / 2.3mm 2-Way Ignition Coil Plug / Renault 2-Pin Ignition Coil Connector.

Applications & Fitment: High-reliability waterproof female electrical connector kit engineered for engine bay, ignition, and sensor sub-harnesses across Toyota, Lexus, Renault, Nissan, and global automotive platforms. Designed specifically for two 2.3mm female socket contacts (090II series) and individual silicone wire cavity seals on a single-row layout. Mates directly with male connector housing Yazaki 7182-8226-30 / Toyota 90980-11247. Widely specified for Renault pencil ignition coils (1.4L, 1.6L, 2.0L 16V K4M / F4R engines), Toyota ignition coils, camshaft and crankshaft position sensors, variable valve timing (VVT) solenoids, coolant temperature switches, and auxiliary fog lamp sub-harness jumps requiring full IP67 weatherproofing integrity. Engineered to withstand continuous engine compartment vibration, high electrical current loads, fluid exposure (engine oil, fuel, coolant), and extreme thermal cycling (-40 to 120 degrees Celsius). Essential stock for auto-electricians, Renault/Toyota specialists, engine reconditioners, harness repair technicians, and trade distributors.

Technical Attributes:

- OEM Part Number: 7283-8226-30 (Manufacturer: Yazaki / Toyota Cross-Reference: 90980-11246)

- Product Component Classification: 2.3mm (090II) Female Socket / Receptacle Connector Housing Kit

- Connector Family Series: Yazaki 2.3II (090II) Sealed Series

- Connection Type: Wire-to-Wire / Wire-to-Device Inline Female Receptacle

- Total Position Count: 2-Way / 2-Pin Female Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Inline Configuration Profile

- Compatible Terminal Blade Width: 2.30 mm Female Socket Contacts (090II Series Receptacles)

- Terminal System Compatibility: Accepts Yazaki 7116-4020 / 7116-4021 series female crimp socket terminals and individual silicone wire seals (e.g., 7158-3030-50 / 7158-3031-60 series)

- Directly Mating Part Number: Yazaki 7182-8226-30 / Toyota 90980-11247 (2.3II 090II Series 2-Way Male Housing)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Rated)

- Structural Material Base: Premium Grade Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Black Body with White Secondary Lock (TPA)

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as a complete connector kit including 1x 2-way female housing, 2x 2.3mm female crimp socket terminals, and 2x individual silicone wire seals. Multi-tier trade volume discounts apply automatically at checkout.
