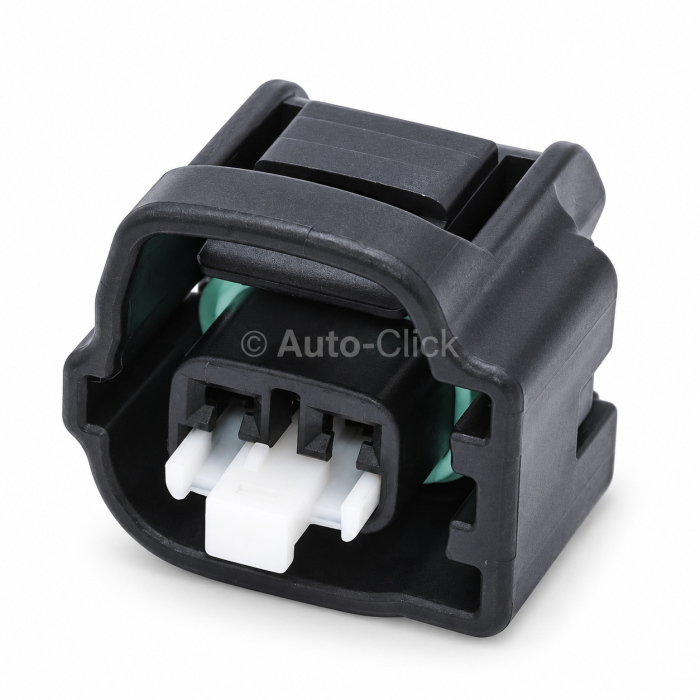

Yazaki 7283-7028-30 2.3II (090II) 2-Way Female Connector Housing

The Component: Genuine Yazaki OEM 2-position female socket housing / 2.3II (090II) Series 2.3mm waterproof automotive connector plug / Compact 1x2 single-row cavity layout / Top primary locking latch with integrated internal circumferential weather seal and hinged secondary terminal locking retainer / Molded from high-grade, heat- and chemical-resistant Polybutylene Terephthalate (PBT) resin / Component Part Number: 7283-7028-30 / Alternate OEM Identifiers: Yazaki 7283-7028-30 / 7283702830 / 090II 2-Pin Female Plug / 2.3mm 2-Way Female Housing / Waterproof 2-Pin Sensor Connector / Black 2-Way Automotive Receptacle.

Applications & Fitment: High-reliability waterproof female electrical connector housing engineered for engine bay, chassis, lighting, and sensor sub-harnesses across Toyota, Lexus, Nissan, Honda, Subaru, Mazda, and Mitsubishi vehicle platforms. Designed specifically to hold two 2.3mm (090II series) female socket contacts with individual silicone wire cavity seals on a 1x2 grid layout. Mates directly with male connector housing Yazaki 7282-7028-30. Widely specified for horn connections, fog lamps, washer fluid pumps, coolant temperature sensors, fluid level switches, and exterior lighting harnesses requiring full IP67 weatherproofing integrity. Engineered to withstand severe engine vibration, fluid exposure (oils, fuel, washer fluid, road spray), and extreme thermal cycling (-40 to 125 degrees Celsius). Essential stock for auto-electricians, Japanese vehicle specialists, harness repair technicians, and trade distributors.

Technical Attributes:

- OEM Part Number: 7283-7028-30 / 7283702830 (Manufacturer: Yazaki Corporation)

- Product Component Classification: 2.3mm (090II Series) Female Socket Connector Housing Device

- Connector Family Series: Yazaki 2.3II (090II) Sealed Connectors

- Application Profile: Wire-to-Wire / Wire-to-Device / Wire-to-Board Connections

- Connection Type: Cable-to-Cable Inline / Cable-to-Component Female Receptacle Housing

- Total Position Count: 2-Way / 2-Pin Female Plug

- Cavity Layout Matrix: 1 Row x 2 Columns Configuration Profile

- Compatible Terminal Blade Width: 2.30 mm (090 Class) Female Socket Contacts

- Terminal System Compatibility: Accepts Yazaki 2.3II / 090II female socket crimp terminals (e.g., 7116-4020 series) and individual silicone wire seals (e.g., 7157-3560 series / 7157-3561 cavity plugs)

- Directly Mating Part Number: Yazaki 7282-7028-30 (2.3II Series 2-Way Male Housing - Black)

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Rated)

- Structural Material Base: Premium Grade Polybutylene Terephthalate (PBT)

- Color Profile: Factory Solid Black Body

- Operating Temperature Limit: -40 to 125 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 2-way female housing assembly with internal seal. Female socket crimp terminals, single wire cavity seals, cavity dummy plugs, and mating male connector housing (7282-7028-30) are sold separately. Multi-tier trade volume discounts apply automatically at checkout.
