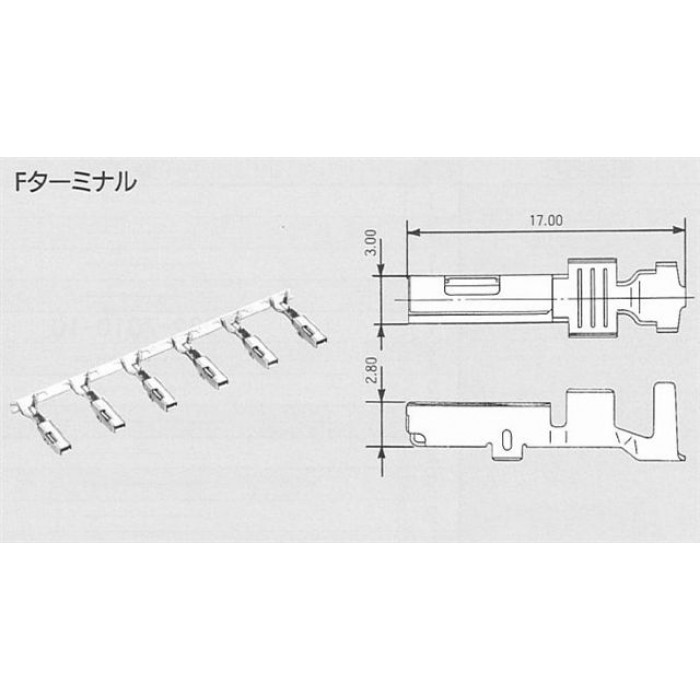

Original Yazaki 7116-4026

Family 2.3II (090II) Connectors

Type -    Terminal

Connection Type Wire to Wire

Wire to Board

Wire to Device

Unsealed/Sealed Sealed

Male/Female Female

Tab Width mm (inches) 2.3 (090)

Material Copper Alloy

Plating Tin Plating

Wire Type AVS AVS AVS

Size (Min) 0.85 0.85 1.25

Size (Max) 0.85 1.25 1.25
