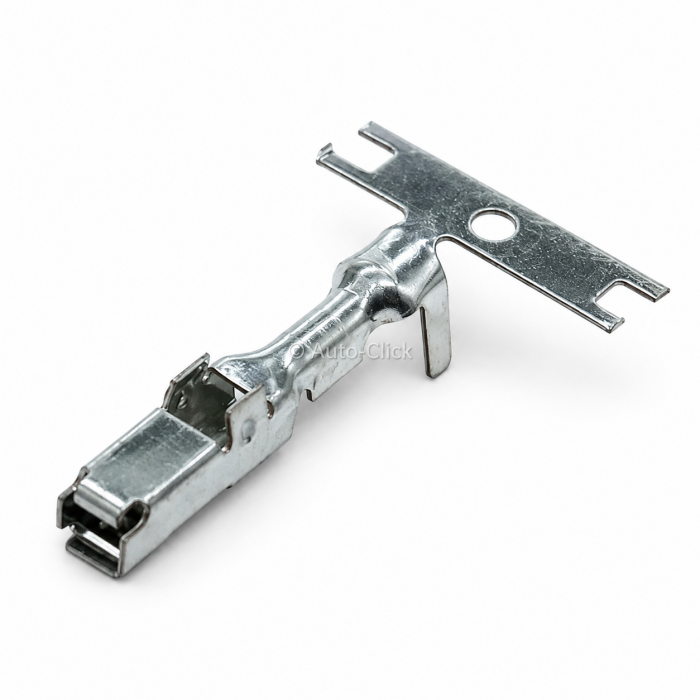

Yazaki 7116-4025 2.3II 090II Female Terminal 0.3-0.5mm² Crimp Terminal

The Component: Genuine Yazaki Corporation OEM female socket crimp terminal contact / Premium 2.3mm / 2.3II (090 II) Series sealed automotive electrical contact / Precision stamped dual-leaf box socket profile with integrated secondary locking tangs / High-conductivity tin-plated copper alloy construction / Component Part Number: 7116-4025 / Alternate OEM Identifiers: 71164025 / 7116-4025-08 / 7B16-4025 / Yazaki 2.3II 090II Female Socket Terminal 0.3-0.5mm².

Applications & Fitment: High-reliability female receptacle crimp contact engineered for signal and low-current electrical circuits in 2.3mm (090 II) series sealed connector housings across Japanese OEM vehicle platforms (Toyota, Lexus, Honda, Nissan, Mazda, Subaru). Designed to mate with 2.3mm x 0.64mm male blade terminals (e.g., Yazaki 7114-4025 series) in engine management sensors, air bag circuits, lighting sub-harnesses, and control unit connectors. Crimp ears accommodate small wire cross-sections from 0.30mm² to 0.50mm² (22 AWG to 20 AWG / AVS 0.3–0.5 equivalent cable) together with individual cable wire seals (e.g., Yazaki 7158-3006-90 blue seal). Engineered for superior resistance to thermal stress, mechanical vibration, and contact fretting corrosion (-40 to 120 degrees Celsius). Essential stock for auto-electricians, harness repair technicians, Japanese vehicle specialists, and automotive trade distributors.

Technical Attributes:

- OEM Part Number: 7116-4025 / 71164025 (Manufacturer: Yazaki Corporation)

- Product Component Classification: Female Socket Crimp Terminal Contact

- Connector Family Series Compatibility: Yazaki 2.3mm / 2.3II (090 II) Series Sealed Housings

- Compatible Mating Tab Width: 2.30 mm (.090 Terminal System / 2.3mm x 0.64mm Blade)

- Applicable Wire Gauge Range: 0.30 mm² to 0.50 mm² (22 AWG to 20 AWG / AVS 0.3 - AVS 0.5 Equivalent Wire)

- Compatible Wire Seal: Yazaki 7158-3006-90 (Blue)

- Mating Male Terminal Part Number: 7114-4025 / 7B14-4025

- Material Base & Plating: High-Conductivity Copper Alloy with Tin (Sn) Surface Plating (Thickness: 0.25mm)

- Current Rating Capacity: Up to 5 Amps continuous (dependent on wire cross-section)

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as individual loose crimp contacts (or strip feed reel quantities upon request). Connector housings, wire seals, male pin terminals, and ratchet crimp tooling sold separately. Multi-tier trade volume discounts apply automatically at checkout.
