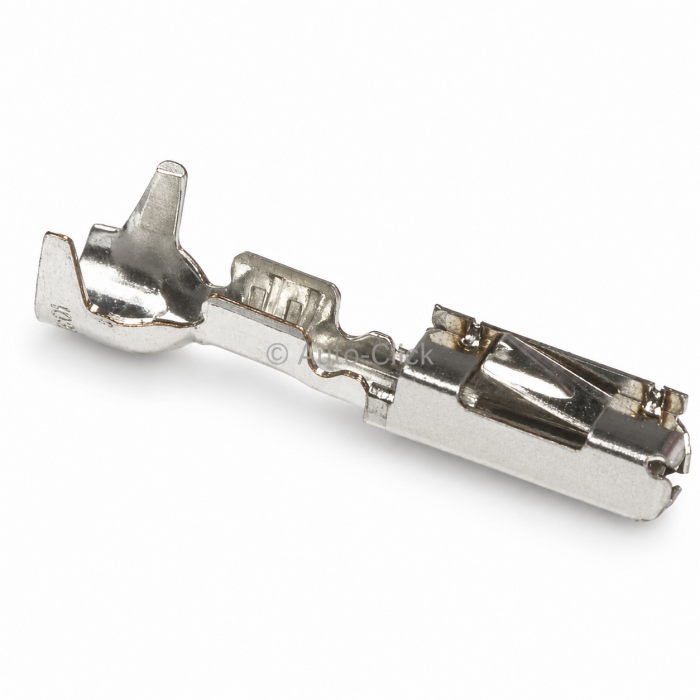

5-962885-1 MQS

Product Type Features

Sealable : Yes

Primary Locking Feature : Locking Lance

Wire Type : Copper

Receptacle Style : 180°

Contact Features

Crimp Type : F-Crimp

Terminal & Splice Type : Receptacle

Mating Tab Width : .63 mm [ .025 in ]

Mating Tab Thickness : .63 mm [ .025 in ]

Interface Plating : Tin (Sn)

Contact Termination Area Plating Material : Tin (Sn)

Termination Features

Termination Method : Crimp

Dimensions

Wire Size (mm²): .35

Wire Size Search (AWG): 22

Wire Size Search (mm²): .3, .35

Wire Insulation Diameter : 1.1 – 1.6 mm [ .043 – .063 in ]

Usage Conditions

Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
