2301335-1

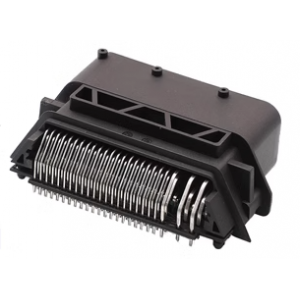

TE Connectivity 2301335-1
94POS,HYBRID,HDR ASSY,90DEG,SLDR
Product Type Features
Connector Shape : Rectangular
Connector System : Cable-to-Board
Header Type : Header & Push-Push Assembly
Sealable : Yes
Connector & Contact Terminates To : Printed Circuit Board
PCB Connector Assembly Type : PCB Mount Header
Ground Feature Type : Grounding Contact
Applied Pressure : Medium Force
Mixed & Hybrid Header : Yes
Configuration Features
Number of Positions : 94
Number of Rows : 3, 4
PCB Mount Orientation : Right Angle
Body Features
Primary Product Color : Black
Contact Features
Contact Mating Area Plating Material : Tin
Contact Type : Pin, Tab
Termination Features
Termination Method to PCB : Surface Mount
Mechanical Attachment
Connector Mounting Type : Panel Mount
Mating Alignment : With
PCB Mount Alignment : With
PCB Mount Retention : With
Housing Features
Centerline (Pitch) : 2.5 mm [ .095 in ]
Usage Conditions
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
