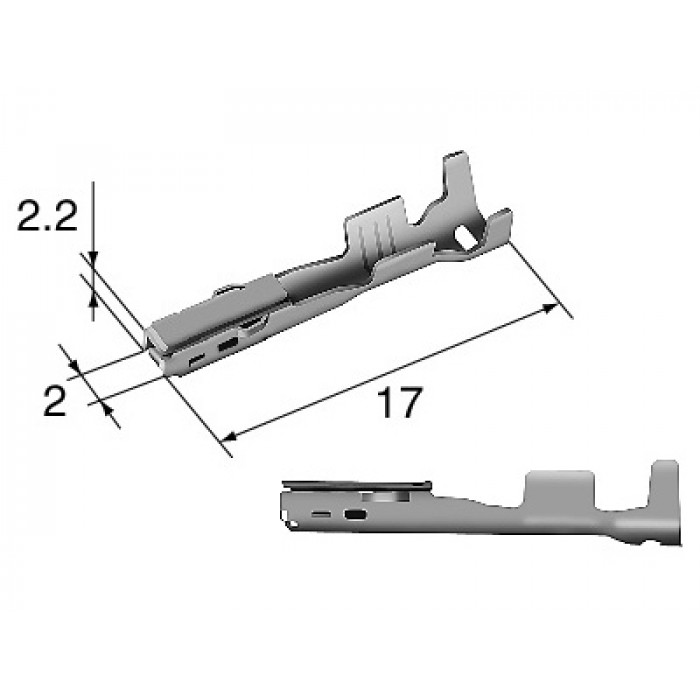

8100-3068 Terminal

HX sealed seriesHV - HVG sealed series

Terminal For AV Wire

1.0mm (040)

Sealed/Unsealed sealed

Male/Female F

Tab Size 1.0mm (040)

Size M

Mating parts 8100-3178 (HX sealed series / HV / HVG sealed series)

Applicable wire size

0.75-1.25 mm2

Cable overall diameter (mm) 1.8-2.2

Materials Heat-resistant copper alloy

Surface treatment Tin-plated

Contact resistance

Initial

5mΩ Max.

after durability tests

10mΩ Max.

Leak current 100μA Max.

Insulation resistance 100MΩ Min.
