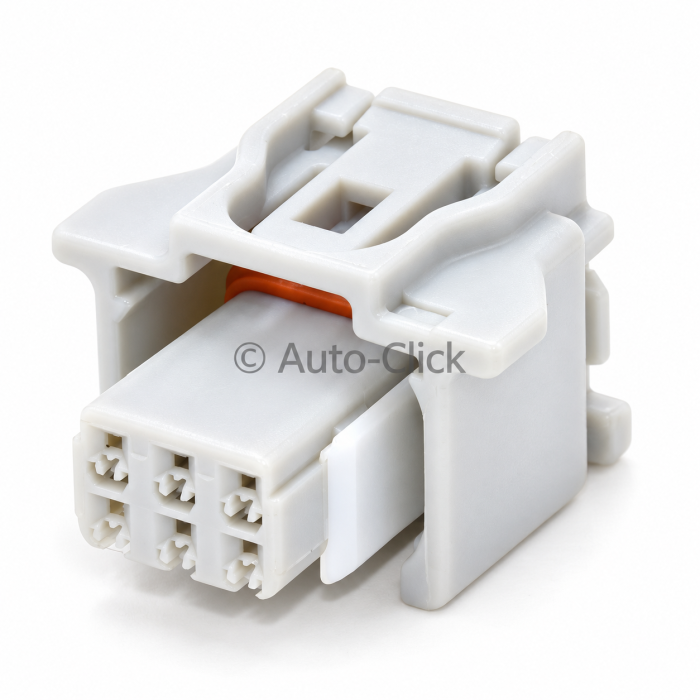

Toyota 90980-12790 6-Way Female 025 Connector Housing

The Component: Genuine Toyota OEM 6-position female socket housing waterproof automotive connector plug / Compact 2x3 dual-row cavity layout / Top primary locking latch clip with integrated silicone circumferential interface seal and hinged secondary terminal lock / Molded from high-grade, heat-resistant Polybutylene Terephthalate (PBT) resin / Component Part Number: 90980-12790 / Alternate OEM Identifiers: Toyota 90980-12790 / 9098012790 / Toyota 6-Pin Blind Spot Radar Plug / 025 Series 6-Way Female Housing / Toyota Reverse Radar Connector 90980-12790 / IP67 Sealed 6-Pin Receptacle.

Applications & Fitment: High-reliability waterproof female electrical connector housing engineered for external bumper sensors, camera modules, and chassis sub-harnesses across Toyota, Lexus, and Scion vehicle platforms. Designed specifically to accept six 0.64mm (025 class) female socket crimp terminals with individual silicone wire seals on a 2x3 grid matrix. Widely specified for blind spot monitoring (BSM) radar sensors, rear parking assist sensors, tailgate backup cameras, power folding mirror controls, and front radar assemblies requiring full IP67 environmental sealing. Engineered to withstand harsh underbody spray, road salt, engine heat, and severe chassis vibration (-40 to 120 degrees Celsius). Essential stock for auto-electricians, Japanese vehicle specialists, ADAS calibration technicians, harness repair specialists, and trade distributors.

Technical Attributes:

- OEM Part Number: 90980-12790 / 9098012790

- Product Component Classification: 0.64mm (025 Class) Female Socket Connector Housing Device

- Connector Family Series: Sumitomo TS / 025 Series Sealed Connector System

- Application Profile: Cable-to-Device / Cable-to-Cable Inline Connections

- Connection Type: Wire-to-Device / Wire-to-Wire Receptacle Housing Plug

- Total Position Count: 6-Way / 6-Pin Female Plug

- Cavity Layout Matrix: 2 Rows x 3 Columns Configuration Profile

- Compatible Terminal Blade Width: 0.64 mm (025 Class) Female Socket Contacts

- Terminal System Compatibility: Accepts Sumitomo 025 / TS Series female socket crimp terminals (e.g., 8100-3624 / 8100-1472 series) and individual silicone wire seals

- Ingress Protection Status: Weatherproof / Waterproof Fully Sealable (IP67 Rated)

- Structural Material Base: Premium Grade Polybutylene Terephthalate (PBT)

- Color Profile: Factory Light Grey / Dark Grey Housing with Internal Silicone Seal

- Operating Temperature Limit: -40 to 120 degrees Celsius

- Commercial Procurement Status: Provided as an individual unpopulated 6-way female housing assembly with internal perimeter seal. Female socket crimp terminals and wire cavity seals sold separately. Multi-tier trade volume discounts apply automatically at checkout.
