| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £3.80 | — |
| 10+ | £2.30 | |
| 100+ | £1.35 | |
| 1000+ | £0.85 |

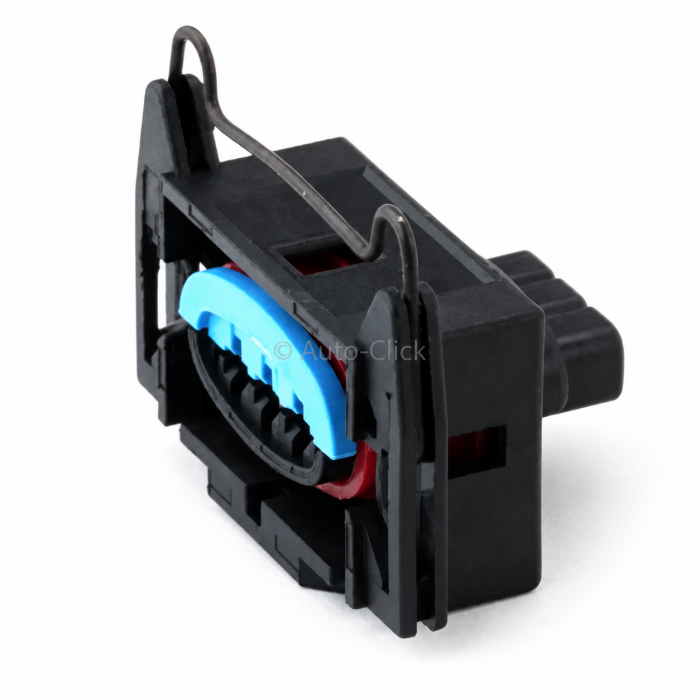

The Component: High-performance sealed female receptacle ignition coil pack connector plug housing. EDIS Series Interconnect taxonomy / 3-position single-row female casing / Standard Keying Profile (Dark Charcoal Gray / Premium Heat-Stabilized Engineered Composite / Sealed Waterproof / 1x3 Inline Grid Layout / Female Ignition Coil Lead Loom Plug / Component Variant Alias: 89FG-14A464-HCB / Global Order Reference: 89FG14A464HCB).
Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) specification wire-to-device waterproof connection plug designed explicitly for harsh under-hood environmental conditions and high-energy electronic ignition configurations. This 3-pin female housing is a legendary wiring loom repair staple across the global Ford Motor Company vehicle network—extensively integrated within classic and modern Ford 4-cylinder engine families, including the Zetec, Duratec, CVH, Endura, and Ka platforms (commonly powering the Focus, Fiesta, Mondeo, Transit, Sierra, and Escort lines). It serves as the primary factory connector interface for the Electronic Distributorless Ignition System (EDIS) coil pack block, as well as select camshaft position sensors and idle air control valves. It features an integrated heavy-duty external stainless steel wire bail snap spring latch mechanism that locks securely over the mating coil pack header's molded retention shelf, establishing an absolute, low-tolerance retention hold resilient to continuous engine thermal cycles and severe multi-axis structural harmonics. Engineered to conform to strict tier-1 automotive validation guidelines, its internal cavities pair with high-elasticity single-wire rubber seals to form an absolute barrier against high-pressure moisture ingress, road spray washdowns, salt crusting, and aggressive under-hood oil or fuel vapors. Highly vulnerable to body shell fracturing and wire bail distortion over time due to intense localized cylinder head heat soaking, making it a critical stock item for professional auto-electrical workshops and loom restorers.
Technical Attributes:
- Manufacturer Part Number: 89FG-14A464-HCB / 89FG14A464HCB (Brand: OEM Specification Standard / Heavy-Duty Replacement Class)
- Product Series Taxonomy: EDIS / Electronic Distributorless Ignition System Accessory Group
- Configuration: 3-Position / 3-Way Female Receptacle Plug, Single-Row 1x3 Linear Layout
- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 2.8mm nominal blade width female socket receptacles
- Connector Style: Receptacle Housing for Female Contacts (Free-Hanging Wire Loom Ignition Lead Interface)
- Fastening & Locking Architecture: Features an integrated high-tension stainless steel wire bail snap latch mechanism for instant manual release and positive retention locking
- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing an internal rubber perimeter interface ring matrix and independent single-wire cavity seals
- Base Structural Compound: Premium Glass-Reinforced Heat-Stabilized Polyamide/PBT engineered composite for maximum thermal tracking resistance, rigid dimensional memory, and robust chemical toughness
- Color Profile: Factory Standard Dark Charcoal Gray housing block assembly
- Circuit Rating Threshold: Form-fitted for standard high-energy low-voltage ignition trigger signalling and power distribution lines operating below 32V DC continuous
- Operational Thermal Window: Severe-duty engine block and cylinder head layout certified to maintain material structural integrity from -40°C up to +125°C
- Assembly Form Factors Available: Offered as a loose workshop repair component shell or as a pre-terminated 300mm pigtail kit containing pre-crimped wires for rapid butt-splice harness reconstruction
- Mating Counterpart Interface: Pairs seamlessly inline directly onto the primary 3-pin male terminal pin header array found on standard Ford EDIS ignition coil pack units
- Commercial Access: Available as loose individual repair housings or convenient bulk trade pack repair connection kits containing matched terminals and wire seals. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
