| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £9.60 | — |
| 100+ | £7.00 |
| Status | Active | Category | PCB Headers and Receptacles |
|---|---|---|---|

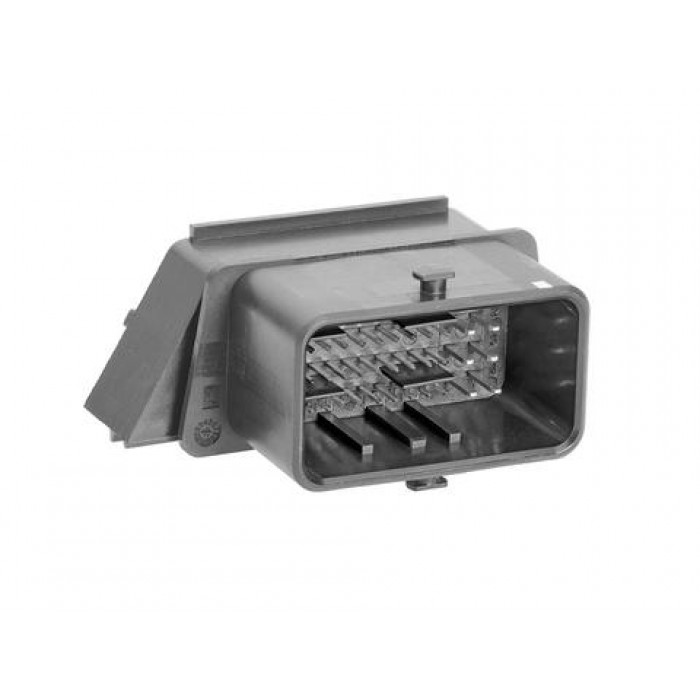

| Series | 47732 | Description | 2.50mm, 3.50mm, 3.70mm CMC Header, Right-Angle, 36 Circuits, Lead-Free |
| Application | Automotive, Power, Wire-to-Board | Comments | Coding: Black |
| Component Type | PCB Header | Product Family | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Product Name | CMC | UPC | 883906907129 |
| Current - Maximum per Contact | 6.0A | Voltage - Maximum | 14V DC |
|---|
| Breakaway | No | Circuits Detail | 6 x 1.5mm & 30 x 0.635mm terminals |
|---|---|---|---|
| Circuits (Loaded) | 36 | Circuits (maximum) | 36 |
| Color - Resin | Black | Durability (mating cycles max) | 20 |
| First Mate / Last Break | Yes | Glow-Wire Capable | No |
| Guide to Mating Part | Yes | Keying to Mating Part | Yes |
| Lock to Mating Part | Yes | Material - Metal | Copper Alloy |
| Material - Plating Mating | Tin | Material - Plating Termination | Tin |
| Material - Resin | Polyester | Net Weight | 32.800/g |
| Number of Rows | 3 | Orientation | Right Angle |
| Packaging Type | Tray | PCB Locator | Yes |
| PCB Retention | None | PCB Thickness - Recommended | 1.60mm |
| Pitch - Mating Interface | 2.50mm, 3.50mm, 3.70mm | Pitch - Termination Interface | 2.50mm, 3.50mm, 3.70mm |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Shrouded | Closed Ends | Stackable | No |
| Temperature Range - Operating | -40° to +105°C | Termination Interface Style | Solder or Weld |
