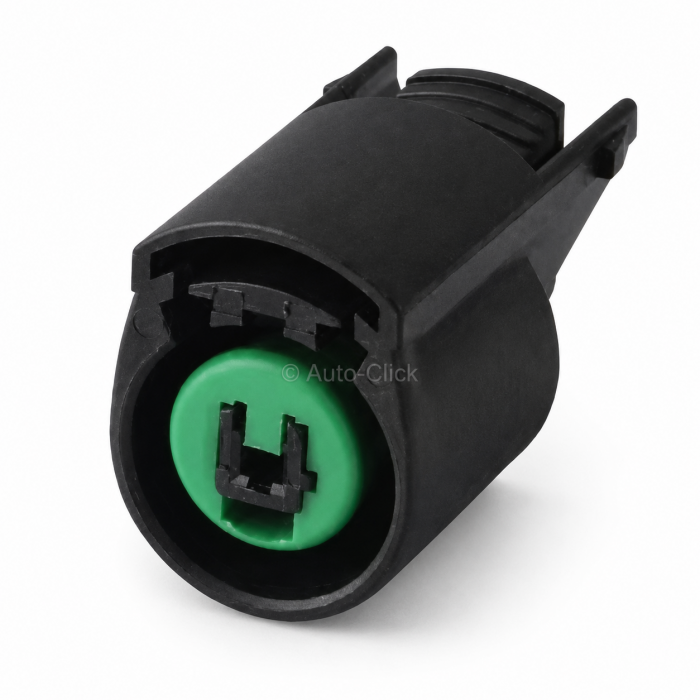

KUM PB625-01027 1-Way Female Sealed Automotive Connector

The Component: Genuine KUM high-performance automotive wire-to-device sealed female connector housing. NMWP / 090 (2.3mm) Series taxonomy / 1-Position (1P) single cavity female receptacle plug structure / Impact-resistant PBT/PA66 engineering polymer body / Integrated terminal position assurance (TPA) lock / Heavy-duty automotive sensor and engine accessory interface component / Component Part Number: PB625-01027 / KUM Order Reference: PB625-01027.

Applications & Fitment: Engineered as an industry-standard original equipment (OE) specification 1-way waterproof connection system across Asian, European, and domestic automotive platforms. This compact female plug is widely utilized for single-pin engine compartment applications, most notably oil pressure sensors, air conditioning compressor clutches, single-terminal temperature senders, and specialized automotive horns. Built to withstand continuous engine vibration and thermal cycles, it features a click-lock mating design that provides an audible mechanical confirmation when securely connected to the male device header. The connector features a front-loading terminal orientation that accepts standard 2.3mm (090 series) blade width female terminals. When properly assembled with independent single-wire silicone seals, it achieves an IP67-equivalent environmental rating, completely sealing out water, oil, road salt, and dirt. It is perfect for professional wiring harness fabrication, performance motorsport builds, and direct workshop electrical repairs.

Technical Attributes:

- Manufacturer Part Number: PB625-01027 (Brand: KUM / Aptiv)

- Alternate Manufacturer Reference: HN625-01027 / NMWP01FY

- Product Series Taxonomy: 2.3mm Series / 090 Sealed Family / NMWP Series

- Number of Cavities: 1 Position (Single Cavity)

- Housing Gender Architecture: Female Plug (Mates to Male Sensor/Device Header)

- Compatible Terminal Blade Width: 2.30mm (090 Series)

- Connection System Classification: Wire-to-Device / Wire-to-Sensor

- Primary Locking Mechanism: Integrated TPA Lock (Green Front Insert)

- Environmental Protection: Sealed System (Requires independent single-wire seals)

- Body Composition Material: High-grade Thermoplastic (PBT+G / PA66+GF)

- Color: Black Housing with Green Front Insert

- Outer Profile Dimensions: Length: 29.9mm | Width: 17.5mm | Height: 22.7mm

- Operating Temperature Range: Minimum -40°C up to Maximum 120°C continuous exposure

- Mating Part Reference: Fits standard male 1-pin sensor interfaces (Cross-mate reference: PB623-01020)

- Trade Packaging Logistics: Available as a standalone loose housing shell, handy pre-packed repair kits (with terminals and seals), or pre-assembled pigtails. Volume trade discounts automatically update inside your cart for bulk auto-electrical workshop purchasing.
