MX23A40NF1
· JAE MX23A SERIES · Our Part Number: 40-AC007 · In Group Stock
Starting
£11.20
each
exc. VAT
| Quantity | Unit Price | Saving |
|---|---|---|
| 10+ | £9.50 | |
| 100+ | £8.00 |
Free UK delivery over £30
Genuine OEM parts
30-day returns
Full traceability
Secure checkout
Accepted:
Product Description

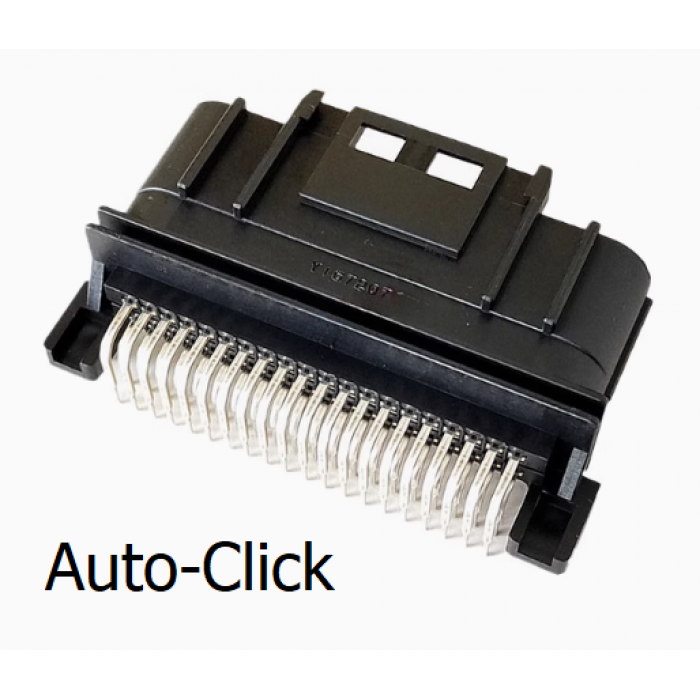

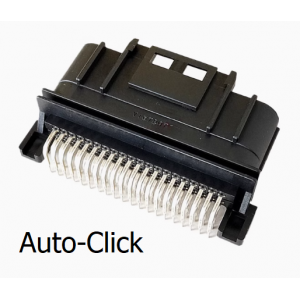

JAE MX23A40NF1
Compact automotive Connector, Low profile, Double fin structure, 040 contacts, waterproof, board-to-cable application, 40 pos., Right angle Pin header
| Part Number | MX23A40NF1 |
|---|---|
| Status | Active |
| Number of Positions | 40 pos. |
| Waterproof/ Non-waterproof | Waterproof |
| Connector Type | Pin header |
| Connector Style | Right angle |
| Wire Termination Style | - |
| Applicable Wire Size (AWG) | - |
| PCB Mounting Method | Soldering (Through-hole) |
| Material of Insulator | Glass filled PBT |
| Color of Insulator | Black |
| Material of Contact | Copper alloy |
| Finish of Contact in Connecting Area | Tin plating |
| Finish of Contact in Terminal Area | |
| Finish of Contact in PCB Mounting Area | Tin plating |
| Applicable Cable Type | - |
| Applicable Cable Conductive Area (mm2) | - |
| Applicable Cable Sheath Diameter (mm) | - |
| Applicable Contacts | |
| Use with Accessories | |
| Applicable Product Part Numbers | |
| RoHS compliant | 10 substances (2011/65/EU, (EU)2015/863) |
| REACH compliant | 241 substances (27/06/2024) |
| Combination | MX23A40SF1 |
| Remarks | Standard type |
