MX23A36SF1
Part No36-AC012 RoHS
We Ship Worldwide — Daily
Tracked international delivery to 190+ countries Secure shipments by UPS/DHL or FEDEX.
| Qty | Unit price | Saving |
|---|---|---|
| 1+ | £12.30 | — |
| 10+ | £11.00 | |
| 100+ | £9.10 |
In Group Stock
Starting
£12.30
each
Volume quotation (1k+)Fast reply from our RFQ team
Volume Quotation (1k+)
Get a quote from our RFQ team — fast reply
Free UK delivery over £30
World-Wide Shipping
30-day returns
Full traceability
Secure checkout
Accepted:
Product Description

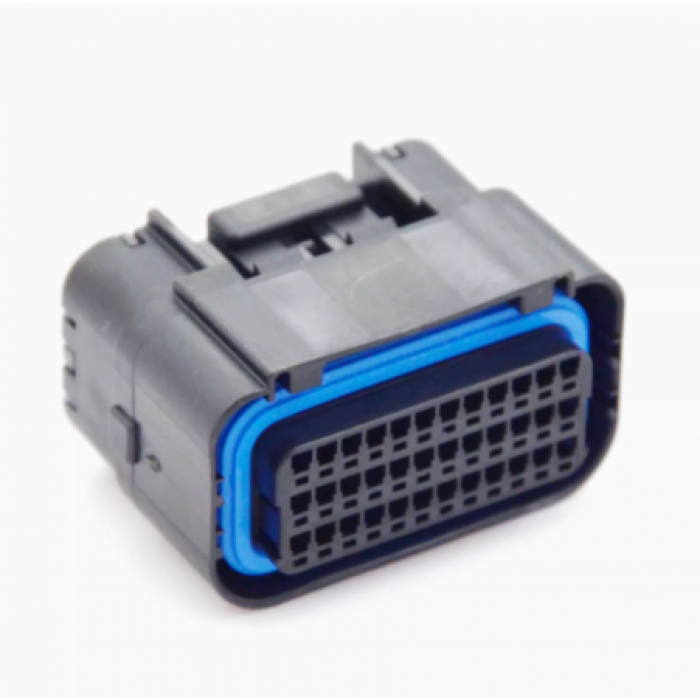

JAE MX23A36SF1 - INCLUDES MX23A36XF1 AND TERMINALS
Compact automotive Connector, Low profile, Double fin structure, 040 contacts, waterproof, board-to-cable application, 36 pos., Socket housing
| Part Number | MX23A36SF1 |
|---|---|
| Status | Active |
| Number of Positions | 36 pos. |
| Waterproof/ Non-waterproof | Waterproof |
| Connector Type | Socket housing |
| Connector Style | - |
| Wire Termination Style | - |
| Applicable Wire Size (AWG) | - |
| PCB Mounting Method | - |
| Material of Insulator | Glass filled PBT |
| Color of Insulator | Black |
| Material of Contact | - |
| Finish of Contact in Connecting Area | - |
| Finish of Contact in Terminal Area | - |
| Finish of Contact in PCB Mounting Area | - |
| Applicable Cable Type | |
| Applicable Cable Conductive Area (mm2) | |
| Applicable Cable Sheath Diameter (mm) | |
| Applicable Contacts | M23S05K* |
| Use with Accessories | MX23A36XF1,M120-55780 |
| Applicable Product Part Numbers | |
| RoHS compliant | 10 substances (2011/65/EU, (EU)2015/863) |
| REACH compliant | 241 substances (27/06/2024) |
| Combination | MX23A36NF1 |
| Remarks |
