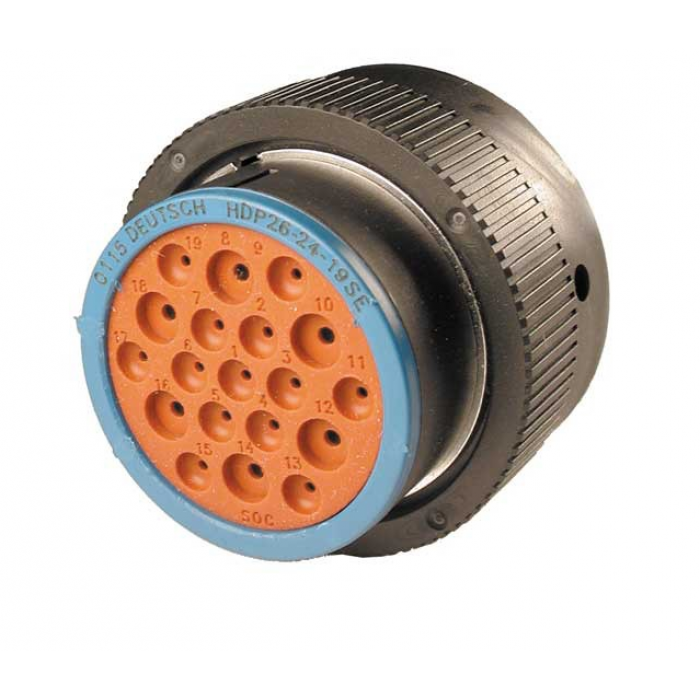

Deutsch Housing HDP26-24-19SE

Housing for Female Terminals, Wire-to-Wire, 19 Position, Sealable, Black, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), Hybrid

Product Type Features

Connector & Housing Shape : Circular

Connector & Housing Type : Housing for Female Terminals

Connector System : Wire-to-Wire

Sealable : Yes

Hybrid Connector : Yes

Primary Locking Feature : Contact Retainer

Connector & Contact Terminates To : Wire & Cable

Configuration Features

Connector Seal Code : E Seal

Number of Positions : 19

Blank Cavity Position : 0

Electrical Characteristics

Operating Voltage (VAC): 250

Operating Voltage (VDC): 250

Nominal Voltage Architecture (V): 12, 24, 48

Body Features

Body Material : PA GF

Cable Exit Angle : 180°

Primary Product Colour : Black

Contact Features

Contact Type : Socket

Contact Size : Size 12, Size 16

Mating Pin Diameter (mm): 1.59, 2.39

Mating Pin Diameter (in): .063, .094

Contact Current Rating (Max) (A): 13, 25
