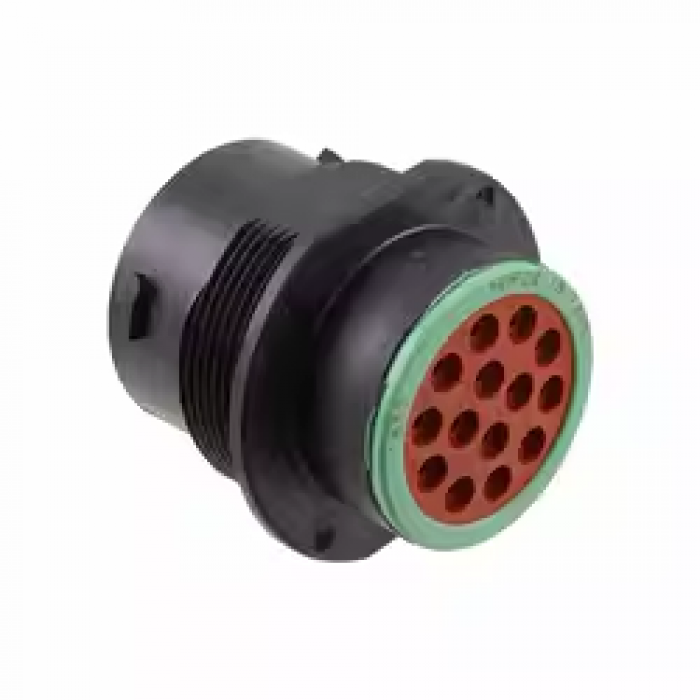

HDP24-18-14PN

Terminals are included

Housing for Male Terminals, Wire-to-Wire, 14 Position, Sealable, Black, Wire & Cable, Power & Signal, Panel Mount, -67 – 257 °F [-55 – 125 °C], Hybrid

Product Type Features

Connector Shape : Circular

Connector & Housing Type : Housing for Male Terminals

Connector System : Wire-to-Wire

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : Contact Retainer

Connector & Contact Terminates To : Wire & Cable

Configuration Features

Connector Seal Code : N Seal

Number of Positions : 14

Blank Cavity Position : 0

Electrical Characteristics

Operating Voltage (VAC): 250

Operating Voltage (VDC): 250

Nominal Voltage Architecture (V): 12, 24, 48

Body Features

Cable Exit Angle : 180°

Primary Product Color : Black

Contact Features

Contact Type : Pin

Contact Size : Size 16

Mating Pin Diameter : 1.59 mm [ .063 in ]

Contact Current Rating (Max) (A): 13

Mechanical Attachment

Mating Alignment : With

Mating Alignment Type : Guide Post

Strain Relief : Add By Accessory

Connector Mounting Type : Panel Mount

Terminal Position Assurance : No
