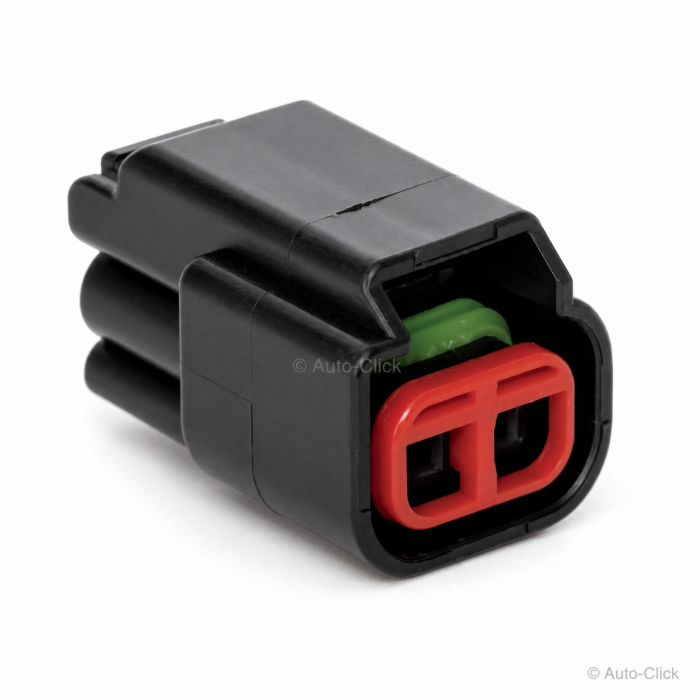

EPC E-3979 (Ford WPT-986) 2-Way Female 1.5mm Sealed Connector Housing

The Component: Genuine EPC (PKC Group) high-performance sealed female receptacle connector plug housing. 1.5mm Sealed Series taxonomy / 2-position single-row female casing / Mechanical Key A Profile (Dark Gray Housing Shell / Premium Heat-Stabilized PPE/PA Composite / Sealed Waterproof / 1x2 Grid Layout / Female Coil-on-Plug and Injector Loom Plug / Component Variant Alias: E-3979 / Global Order Reference: E3979 / Automotive Loom Cross-Reference: Ford 1F1T-14A464-AB / Ford Pigtail Service Kit: WPT-986 / WPT986).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) wire-to-device waterproof connection plug designed explicitly for ultra-harsh under-hood operational environments, intense cylinder-head heat soaking, and continuous engine block vibrations. This 2-pin female socket block is an absolute wiring loom repair and harness reconstruction staple across multiple major domestic and international vehicle platforms—most prominently integrated within Ford Motor Company powertrain architectures. It is standardly deployed across critical vehicle ignition configurations, serving as the primary factory connector interface for 2-pin Coil-On-Plug (COP) pencil ignition coils, select EV6/EV14 fuel injectors, and auxiliary under-hood solenoid control valves. It features an integrated mechanical top-mounted thumb locking latch that clicks firmly over the mating device header's retention ramp, paired with a high-visibility red integrated terminal position assurance (TPA) front locking insert to guarantee total terminal seating and completely eliminate contact back-out. Engineered to conform to rigid tier-1 automotive manufacturing validation guidelines, its internal cavities pair with Yazaki YESC 1.5 series clean-body female sockets and high-elasticity silicone single-wire rubber seals to form an absolute barrier against high-pressure washdowns, road spray salt misting, fine track dust penetration, and aggressive hot engine oil vapors. Highly vulnerable to top-latch snapping or housing fracturing on older vehicle platforms due to continuous extreme thermal cycling, making it a critical service item for auto-electrical workshops and field service technicians.

Technical Attributes:

- Manufacturer Part Number: E-3979 / E3979 (Brand: EPC / PKC Group Genuine Component Class)

- Product Series Taxonomy: 1.5mm Sealed Series Interconnect Family

- Configuration: 2-Position / 2-Way Female Receptacle Plug, Single-Row 1x2 Linear Layout

- Centerline Pitch Spacing: 5.00mm nominal lane depth

- Indexed Polarization: Mechanical Keying Code A Profile (Dark Gray finish variant)

- Automotive OEM Cross-Reference: Ford 1F1T-14A464-AB / Service Pigtail WPT-986

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 1.5mm nominal tab width Yazaki YESC series female socket terminals

- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom Ignition and Fuel Run Interface)

- Fastening & Locking Architecture: Features an integrated positive locking top-mounted mechanical thumb latch clip paired with a pre-installed high-visibility red front-loading TPA lock guide matrix

- Environmental Sealing Level: High-performance waterproof and dustproof isolation utilizing a pre-installed inner rubber perimeter interface seal ring and independent single-wire cavity seals (SWS)

- Base Structural Compound: Premium Heat-Stabilized Glass-Reinforced Polyamide / Polyphenylene Ether (PPE/PA+GF) engineering blend for maximum thermal tracking resistance, rigid dimensional memory, and robust structural impact toughness

- Color Profile: Factory Standard Dark Gray housing assembly block with a distinctive red front retainer plate

- Circuit Rating Threshold: Form-fitted for standard low-voltage signaling and medium-ampacity ignition/injector distribution networks operating below 32V DC continuous; maximum current capacity rated up to 15 Amps depending on wire cross-section

- Operational Thermal Window: Severe-duty engine block and cylinder head shroud layout certified to maintain material elasticity and seal compliance from -40°C up to +125°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine Yazaki YESC 1.5mm series female crimp sockets (such as YESC.15-SKT1 for 22-20 AWG or YESC.15-SKT2 for 18-16 AWG; requires individual cavity single-wire rubber seals like EPC15-SL series to preserve full IP-rated waterproof isolation)

- Mating Counterpart Interface: Pairs seamlessly directly onto the primary 2-pin male terminal pin header array found on standard Ford ignition coil packs and device-side header modules (Note: Not compatible with ignition coils featuring an internal structural step inside the connector shroud, such as select Denso 129700-xxxx series)

- Commercial Access: Available as loose individual workshop repair pieces, bulk wholesale packaging quantities, or master trade distributor stock runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
