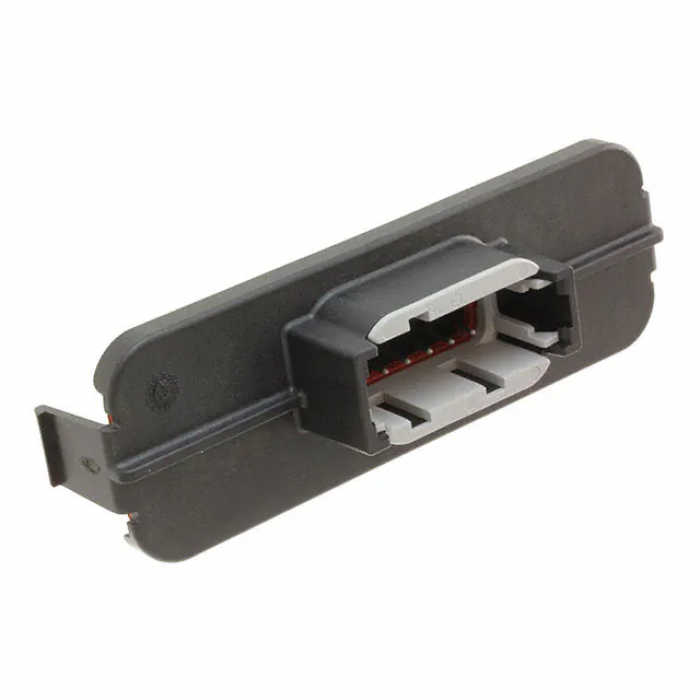

Original DTM13-12PA-R008
PCB Mount Header, Right Angle, Wire-to-Board, 12 Position, 4.19 mm [.165 in] Centerline, Fully Shrouded, Nickel, Through Hole - Solder, Hybrid
Product Type Features
Header Type : Fully Shrouded
PCB Connector Assembly Type : PCB Mount Header
Connector Shape : Rectangular
Connector System : Wire-to-Board
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Hybrid Header : No
Configuration Features
Number of Signal Positions : 12
Connector Modification : PCB Enclosure Header
Number of Positions : 12
PCB Mount Orientation : Right Angle
Number of Rows : 2
Number of Sections : 1
Electrical Characteristics
Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Nominal Voltage Architecture (V): 12, 24
Voltage Rating (Max) (VAC): 250
Voltage Rating (Max) (VDC): 250
Body Features
Primary Product Color : Black
Connector & Keying Code : A
Contact Features
Contact Type : Pin
Contact Size : Size 20
Mating Pin Diameter : 1.02 mm [ .04 in ]
Contact Mating Area Plating Material : Nickel
Contact Current Rating (Max) (A): 7.5
Termination Features
Termination Method to Printed Circuit Board : Through Hole - Solder
