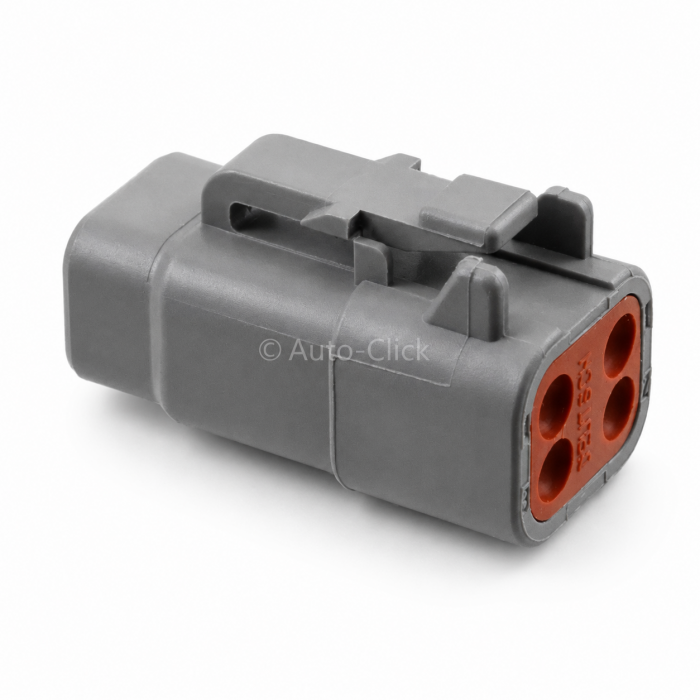

Deutsch DTM06-4S

Terminals and seals are included

12 V / 24 V / 48 V, 4 Position, Automotive Housing for Female Terminals, Wire-to-Wire, 4.19 mm [.165 in] Centerline, Sealable, Gray, Hybrid

Product Type Features

Connector Shape :Rectangular

Mixed & Hybrid Connector :No

Connector & Housing Type :Housing for Female Terminals

Sealable :Yes

Primary Locking Feature :Integrated in Housing

Connector System :Wire-to-Wire

Connector & Contact Terminates To :Wire & Cable

Configuration Features

Blank Cavity Position :0

Number of Positions :4

Number of Rows :2

Electrical Characteristics

Operating Voltage (VDC):250

Operating Voltage (VAC):250

Nominal Voltage Architecture (V):12 | 24 | 48

Body Features

Cable Exit Angle (°):180

Primary Product Color :Gray

Contact Features

Contact Type :Socket

Contact Size :Size 20

Mating Pin Diameter :1.02 mm [ .04 in ]

Contact Current Rating (Max) (A):7.5

Mechanical Attachment

Mating Alignment :With

Mating Alignment Type :Polarization

Terminal Position Assurance :No

Strain Relief :Without

Connector Mounting Type :Cable Mount (Free-Hanging)

Housing Features

Housing Material :PA GF

Centerline (Pitch) :4.19 mm [ .165 in ]

Dimensions

Connector Height :30.1 mm [ 1.18 in ]

Product Length :15.2 mm [ .598 in ]

Product Width :17.6 mm [ .693 in ]

Compatible Insulation Diameter Range :1.3 – 3 mm [ .053 – .12 in ]

Row-to-Row Spacing :4.19 mm [ .165 in ]

Usage Conditions

Operating Temperature Range :-55 – 125 °C [ -67 – 257 °F ]

Operating Temperature (Max) :125 °C [ 257 °F ]

Operation/Application

Circuit Application :Power

Industry Standards

UL Flammability Rating :UL 94V-0

Compatible With Agency/Standards Products :SAE J2030

IP Rating :IP68 | IP6K9K

Packaging Features

Packaging Method :Package

Packaging Quantity :1

Other

Serviceable :Yes

Connector Position Assurance Capable :No
