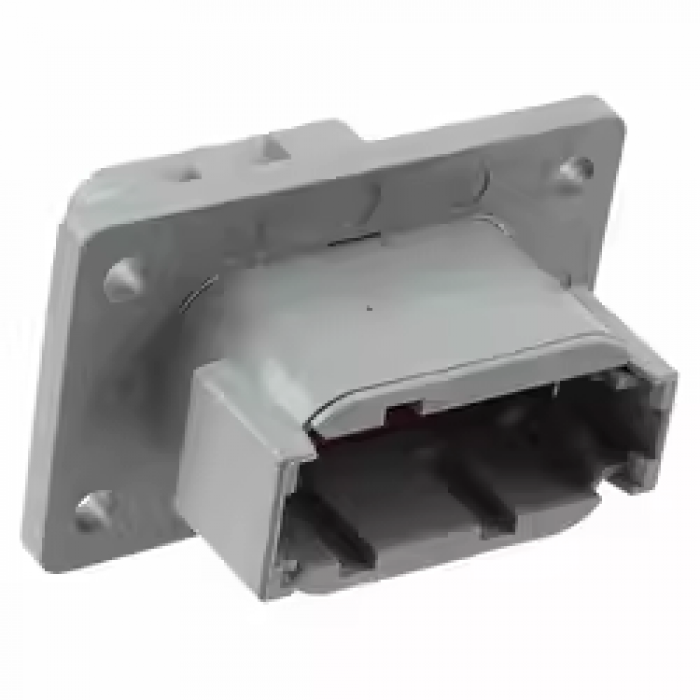

DTM04-12PA-L012

Housing for Male Terminals, Wire-to-Wire / Wire-to-Panel, 12 Position, .165 in [4.19 mm] Centerline, Sealable, Grey, Wire & Cable, Hybrid

Product Type Features

Product Type Features

Connector Shape : Rectangular

Connector & Housing Type : Housing for Male Terminals

Connector System : Wire-to-Panel, Wire-to-Wire

Sealable : Yes

Hybrid Connector : No

Primary Locking Feature : Integrated in Housing

Connector & Contact Terminates To : Wire & Cable

Configuration Features

Connector Modification : Welded Flange

Number of Positions : 12

Number of Rows : 2

Blank Cavity Position : 0

Electrical Characteristics

Operating Voltage (VAC): 250

Operating Voltage (VDC): 250

Nominal Voltage Architecture (V): 12, 24, 48

Body Features

Cable Exit Angle : 180°

Primary Product Color : Gray

Connector & Keying Code : A

Contact Features

Contact Type : Pin

Contact Size : Size 20

Mating Pin Diameter : 1.02 mm [ .04 in ]

Contact Current Rating (Max) (A): 7.5

Mechanical Attachment

Mating Alignment : With

Mating Alignment Type : Keyed

Strain Relief : Add By Accessory

Connector Mounting Type : Panel Mount

Terminal Position Assurance : Yes
