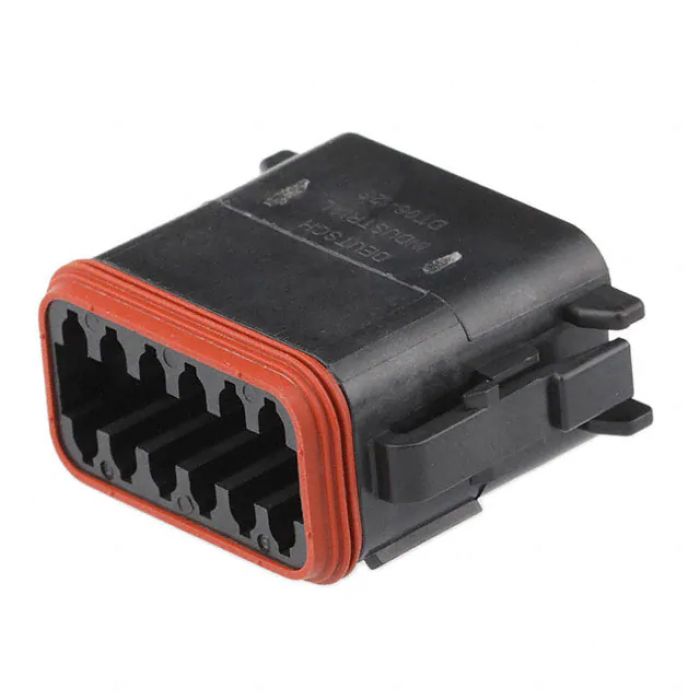

DT06-12SA-CE10
Part NoD-066 RoHSPrice isn't everything
This is a genuine DEUTSCH part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.
- Manufacturer-made
- Traceable
- Certificate of Conformity on request
DT06-12SA-CE10
Terminals wedgelock and seals are Included
12 WAY AUTOMOTIVE CONNECTOR
Product Type Features
Connector & Housing Type : Housing for Female Terminals
Connector System : Wire-to-Wire
Sealable : Yes
Hybrid Connector : No
Primary Locking Feature : Integrated in Housing
Connector & Contact Terminates To : Wire & Cable
Configuration Features
Number of Positions : 12
Number of Rows : 2
Blank Cavity Position : 0
Electrical Characteristics
Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Nominal Voltage Architecture (V): 12, 24, 48
Body Features
Body Material : PA GF
Cable Exit Angle : 180°
Primary Product Colour : Black
Connector Code : A
Contact Features
Mating Pin Diameter : 1.59 mm [ .063 in ]
Contact Current Rating (Max) (A): 13
