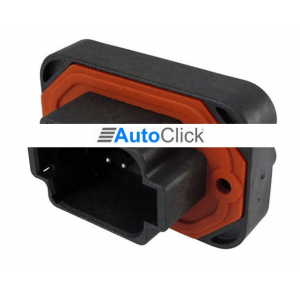

DT13-08PB

Auto Click™ partD-AC073 RoHS
Genuine DEUTSCH OEM · fully traceable
Auto Click™ price
£6.11 each
In Group Stock
Single unit pricing applies. Use the volume quotation form for bulk orders.
Ordering 1,000+? Request an Auto Click™ volume quote
Sold & dispatched by Auto Click™
Free UK delivery £30+
Worldwide shipping daily
30-day returns

Price isn't everything

This is a genuine DEUTSCH part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.

  • Manufacturer-made
  • Traceable
  • Certificate of Conformity on request
See the risks of copy parts →

Product description

Product Type Features

Connector System : Wire-to-Board, Wire-to-Device

Sealable : Yes

Connector & Contact Terminates To : Printed Circuit Board

Hybrid Header : No

Configuration Features

Number of Positions : 8

Number of Rows : 2

Body Features

Color : Black

Connector Code : B

Contact Features

Pin Diameter : 1.5 mm [ .059 in ]

Interface Plating : Tin (Sn)

Termination Features

Termination Method : Through Hole - Solder

Mechanical Attachment

Mounting Orientation : Horizontal/90°

Housing Features

Centerline (Pitch) : 4.5 mm [ .175 in ]

Dimensions

Width : 35.26 mm [ 1.388 in ]

Profile Height from PCB : 35.26 mm [ 1.388 in ]

Length : 55.12 mm [ 2.17 in ]


Usage Conditions

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Operating Temperature (Max) (°C): 100, 105, 110, 120, 125, 65, 70, 75, 80, 85, 90

Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257

Industry Standards

Degree of Protection : IP68

UL Flammability Rating : None
