Sumitomo 8230-4522 TS Series 4.8mm Male Terminal (187 Tab)

Sumitomo 8230-4522 TS Series 4.8mm Male Terminal (187 Tab)

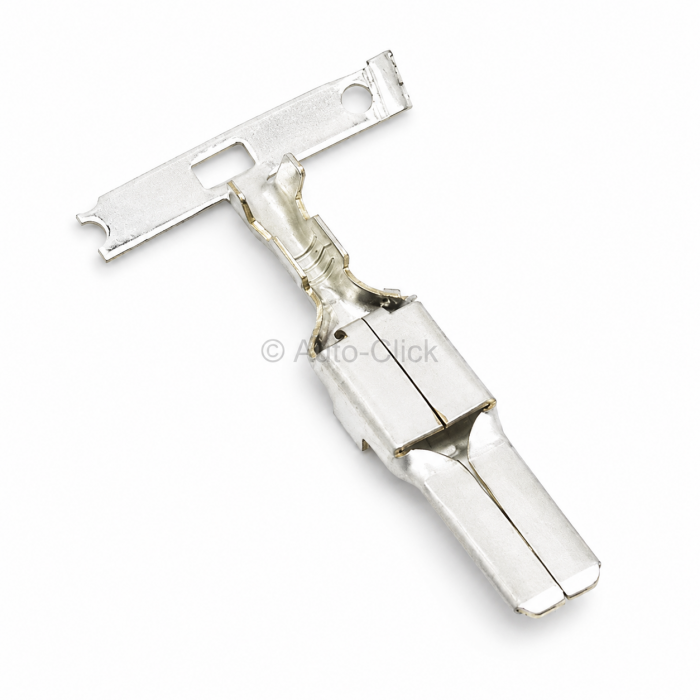

The Component: Genuine TE Connectivity high-performance automotive male crimp tab contact terminal. Econoseal J 070 Mark II Series taxonomy / Clean Body Male Pin Tab / Strip Form Format (Pre-Tin Plated / Premium Brass Alloy / Stamped & Formed Production / F-Crimp Style Wire Attachment / Component Variant Alias: 171631-1 / Global Order Reference: 171631-1 / TE Internal Description: E-J MK-2 070 TAB CONT).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) automotive terminal pin designed explicitly for harsh, environmentally sealed vehicle wiring networks. This 070 series male tab contact is a foundational wiring harness staple across modern Japanese passenger car platforms, motorcycle looms, and industrial engine sensor networks—frequently deployed inside Econoseal J Mark II+ multi-pin plug housings for powertrain management, under-hood sensor clusters, chassis control distribution runs, and exterior lighting systems. It features an advanced 'Clean Body' profile without external locking lances, relying instead on the housing's internal retention mechanisms to prevent terminal back-out while completely eliminating pin tangling during harness assembly. Engineered to deliver absolute conductivity under intense structural road harmonies and multi-axis engine vibration, its pre-tin plating provides exceptional long-term resistance against interface tracking and contact fretting corrosion. Highly sensitive to improper hand-crimping techniques; requires standard micro-automotive F-profile calibrated crimping tools to ensure correct electrical core compression and environmental cavity seal seat alignment.

Technical Attributes:

- Manufacturer Part Number: 171631-1 (Brand: TE Connectivity / AMP Genuine Factory Automotive Class)

- Product Series Taxonomy: Econoseal J 070 Mark II Series Interconnect System

- Contact Terminal Type: Male Tab / Pin Contact

- Mating Tab Dimensional Envelope: 1.80mm nominal mating tab width (.071 in) x 0.64mm tab thickness (.025 in)

- Structural Pin Length: 20.40mm (.80 in) overall contact length profile

- Primary Locking Architecture: Clean Body configuration (zero external lock lances to prevent pin catch or deformation)

- Contact Base Metallurgy: Premium high-conductivity Stamped & Formed Brass alloy

- Contact Interface Plating: High-grade Pre-Tin (Sn) finish for enhanced fretting and atmospheric protection

- Wire Gauge Accommodation Window (AWG): 24 AWG minimum up to 20 AWG maximum line spectrum

- Wire Cross-Section Capacity (mm²): 0.20mm² to 0.50mm² core conductor envelope range

- Compatible Outer Insulation Diameter: 1.40mm minimum to 2.40mm maximum range (optimized to match corresponding single-wire cavity seals)

- Crimp Configuration Profile: Standard F-Crimp style layout for separate wire core and insulation barrel support

- Operating Continuous Current Rating: Certified up to 6.0 Amps maximum continuous current delivery

- Low-Voltage Circuit Threshold: Engineered for standard electronic low-voltage signaling networks operating below 32V DC continuous

- Environmental Isolation: Fully sealable system when paired with corresponding Econoseal single-wire seals inside approved housings

- Operational Thermal Window: High-stability cabin and engine bay envelope certified to maintain structural tension from -40°C up to +105°C

- Associated Extraction Tooling (Not Included): Fully compatible with TE Connectivity extraction device part number 937313-1 for damage-free field servicing

- Mating Counterpart Interface: Mates seamlessly with the corresponding Econoseal J 070 Mark II series female crimp socket contact (TE part number 171630-1)

- Commercial Access: Available in standard trade repair packs, loose piece quantities, or complete factory distribution reels of 6,000 units. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
