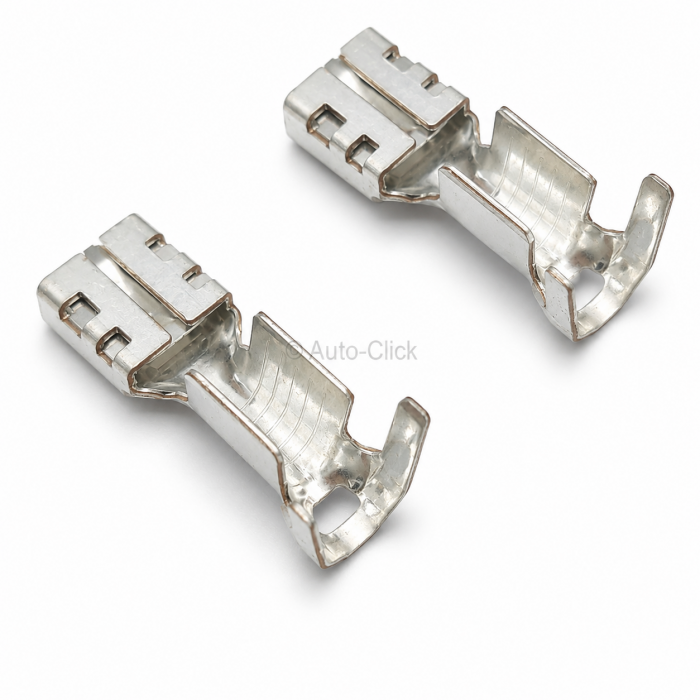

Original Yazaki 7116-5625-06 Terminal - Silver plated

The Component: Genuine Yazaki 7116-5625-06 female crimp receptacle contact terminal. YPT Series high-power 9.5mm (.375 inch) sealed female socket terminal (Copper Alloy / Silver Plated / Loose Piece / Heavy-Duty Electric Current Classification: LARGE).

Series Taxonomy: Yazaki YPT 9.5WP Series System. A specialized, ultra-heavy-duty automotive power distribution and high-current connection platform designed by Yazaki to manage high-load electrical paths (>100 A capacity) while operating reliably across high-vibration and extreme-temperature environments.

Terminal Interface: Massive 9.50mm wide female blade/tab socket receptacle layout. Engineered specifically with robust inner structural spring blocks to handle heavy-gauge main battery power feeds, high-draw charging circuits, and critical distribution block links.

Locking and Sealing Security: Formulated explicitly for high-current sealed environments using a 2-in-1 design philosophy. Features precise physical integration lanes to securely accept heavy-duty single-wire silicone seals (such as Yazaki 7158-3672-50, 7158-3673-90, or 7158-3713-70). Stamped from a heavy-gauge premium copper alloy, the terminal shell is finished in a high-grade factory silver plating (indicated by the -06 suffix), which provides excellent anti-fretting protection and minimizes terminal resistance across massive electrical draws. This terminal features an internal high-force locking tang arrangement that anchors firmly into heavy-duty multi-way plug housings to defeat severe engine-bay harmonics and prevent contact back-out.

Mating Complement: Mates directly with its corresponding 9.5mm male flat blade tab pin partner under Yazaki part number 7114-5623-06 (or related YPT series high-power male variants), designed to nest uniformly within specialized heavy-duty sealed power housings (such as 7287-8211-30, 7287-1991-30, and 7287-1405-80).

Common Applications: Extensively specified for main power feeds, high-output alternator charging lines, glow plug circuits, engine cooling fan control modules, and auxiliary power distribution arrays across commercial heavy vehicles, agricultural machinery, passenger vehicles, and marine engine harnesses. Deployed widely within major OEM global electrical architectures, notably Toyota, Lexus, Hino, and allied industrial transport networks. Highly susceptible to high-resistance hotspots if crimped with uncalibrated hydraulic or manual tooling, or mechanical deformation if forced into a misaligned mating pin during diagnostic field service or heavy-current junction block restorations.

Yazaki 7116-5625-06 YPT 9.5WP Series 9.5mm Heavy-Duty Sealed Female Receptacle Contact Terminal

Eliminate high-resistance voltage drops on your primary electrical feeds and safeguard high-amperage systems with the genuine Yazaki 7116-5625-06 YPT 9.5mm sealed female receptacle terminal. Precision-stamped to strict Tier-1 original equipment automotive standards by Yazaki, this heavy-duty terminal contact is an essential component for high-load wire splicing, battery junction link repairs, and main vehicle power distribution rebuilds. Designed around a high-conductivity premium copper alloy core, it is finished in a specialized factory silver plating profile, creating an incredibly stable, ultra-low resistance conduction surface optimized to handle continuous large-current loads exceeding 100A without thermal degradation.

The 7116-5625-06 terminal is engineered specifically to accept extra-heavy-gauge, thin-wall automotive power cables from 10.00mm² to 16.00mm² cross-sections cleanly. Its massive dual-wing rear insulation cradle works in perfect structural harmony with genuine rubber wire seals to lock out moisture, salt spray, and oil tracking when installed inside waterproof fuse, relay, or inline power distribution block housings. This authentic replacement terminal allows automotive electrical specialists, commercial fleet maintenance technicians, and heavy-equipment engineers to deliver lasting, factory-correct heavy-current circuit restorations.

Engineering Specifications and Technical Attributes:

- Manufacturer Part Number: 7116-5625-06 (Alternative reference: 7116562506 / Brand: Yazaki / Japan)

- Configuration: 9.5mm Female Socket Crimp Receptacle Terminal Contact

- Product Series Taxonomy: YPT Series / YPT 9.5WP High-Current Class Management

- Mating Tab Interface Width: 9.50mm (.375 inch heavy automotive power footprint)

- Physical Dimensions: Length 33.00mm | Width 11.30mm | Height 4.40mm

- Base Structural Material: High-Conductivity Premium Copper Alloy

- Plating Specification Profile: High-Grade Factory Silver Plated Finish (-06 Suffix)

- Electric Current Classification: LARGE (>100 Amps continuous capacity reference)

- Target Wire Cross-Section Capacity: Accommodates heavy-duty 10.00mm² to 16.00mm² automotive cables

- Associated Wire Seals: Fits individual seals 7158-3672-50, 7158-3673-90, or 7158-3713-70

- Mating Male Counterpart Pin: Connects with Yazaki 9.5mm male tab contact 7114-5623-06

- Associated Housing Compatibility: Fits securely inside YPT 9.5WP series multi-way housings (e.g., heavy-duty power block 7287-8211-30)

- Commercial Access: Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent commercial workshops, agricultural engineering hubs, and trade auto-electrical stockists.
