Yazaki 7116-4415-02 Female 0.64mm (025) RH Terminal

Yazaki 7116-4415-02 Female 0.64mm (025) RH Terminal

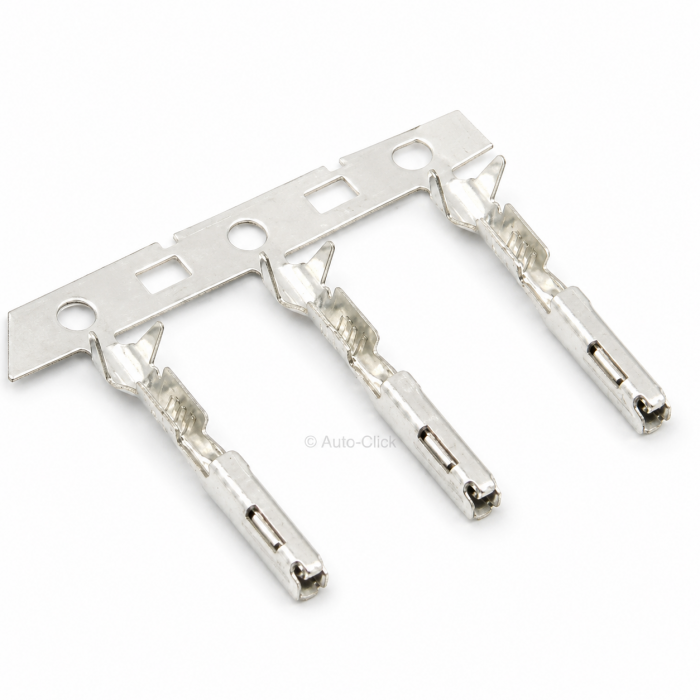

The Component: Genuine Yazaki 7116-4415-02 female socket terminal contact. Automotive RH / HS Series 0.64mm (025) nominal tab width unsealed female crimp pin (Tin-Plated Copper Alloy / Loose Piece format / Engineering part number: 7116-4415-02 / Mates with male pin terminal: 7114-4415-02).

Applications & Fitment: Designed as the standard low-current signal terminal interface across a wide variety of Japanese and European vehicle wiring looms—most notably within Toyota, Lexus, Honda, Nissan, and Ford electronics sub-assemblies. This 0.64mm socket terminal is commonly used inside multi-position automotive plugs handling steering wheel switch clusters, clock springs, body control modules (BCM), mirror adjustment controls, and dashboard instrumentation links.

Because these delicate terminal boxes rely on fine spring tension to preserve logic-level signals, they are highly prone to physical distortion or "pin backing" when a wiring loom is pulled aggressively during modification, or when probe pins are forced into the front face for diagnostic continuity checks. They are an essential workshop service item for correcting intermittent signal failure or rebuilding broken multi-way connector blocks.

Technical Attributes:

- Manufacturer Part Number: 7116-4415-02 / 7116441502 (Brand: Yazaki Corporation)

- Product Family Group: RH Series / HS Series / 025 Connector System

- Gender Type: Female Receptacle / Socket Terminal

- Wire Size(mm2) 0.3

- Terminal Blade Width Class: 0.64mm (Nominal 025 size format)

- Construction Material: High-conductivity Copper Alloy base metal

- Terminal Surface Finish: Pre-tin-plated (Sn) for corrosion resistance and reliable conductivity

- Connection Sealing Profile: Unsealed system (Suitable for interior cabins, dashboard housings, or sealed dry-box modules)

- Recommended Wire Gauge Section: Optimized for thin-wall automotive primary cables ranging from 0.30mm² to 0.50mm² (Approx. 22 AWG to 20 AWG equivalent)

- Target Cable Outer Diameter: Matches outer insulation profiles up to 1.70mm maximum diameter

- Mating Male Pin Counterpart: Directly pairs with Yazaki 7114-4415-02 male blade terminals

- Packaging Format: Available as individual loose pieces for small-batch wire repairs, harness production lines, and prototype work. Tiered commercial wholesale discounts apply automatically at check-out for wiring specialists and trade customers.
