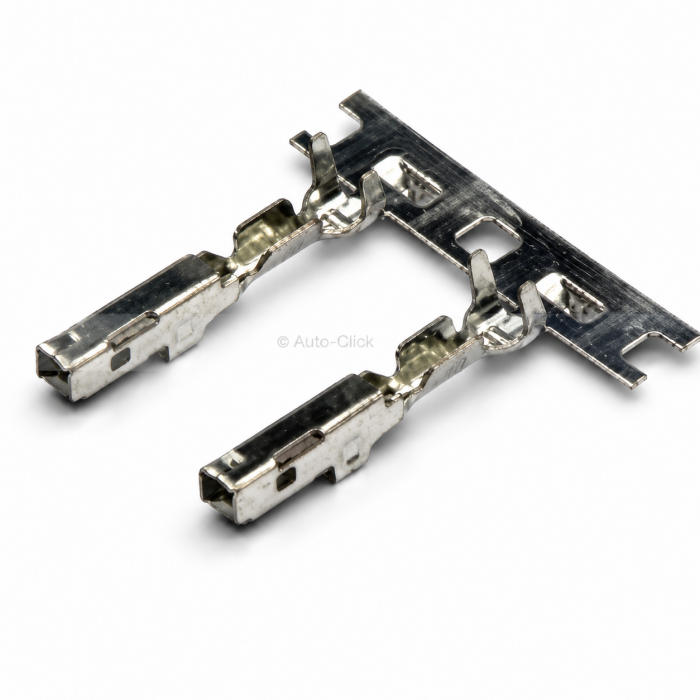

Yazaki 7116-4102-02 YES/YESC Kaizen 1.5mm Female Terminal

The Component: Genuine Yazaki high-performance automotive female receptacle socket contact terminal. YES/YESC Kaizen Series taxonomy / 1.5 x 0.8 Type Interconnect System / Loose Piece Format (Pre-Tin Plated / Premium High-Conductivity Copper Alloy / Stamped & Formed Production / F-Crimp Style Wire Attachment / Standard Grid Deployment Profile / Component Variant Alias: 7116-4102-02 / Global Order Reference: 7116410202).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) female signal and power contact terminal designed explicitly for high-density automotive powertrain harnesses, internal cabin control networks, and unsealed or sealed chassis junction blocks. This YESC Kaizen series 1.5mm female socket contact is a foundational interconnect staple across modern global vehicle platforms—heavily integrated inside factory wiring matrices for major Japanese and international passenger car marques. It is standardly deployed within multi-position plug housings across high-vibration application fields, including engine control modules (ECUs), sensor arrays, instrumentation packs, and chassis relays. Custom-dimensioned to accommodate light-gauge low-voltage vehicle conductors, it matches an applicable cross-sectional wire size window of 0.30mm² minimum to 0.50mm² maximum (roughly matching standard 22 AWG to 20 AWG thin-wall automotive cabling). Engineered for high-speed automated assembly lines or precise manual workshop wire harness rebuilding, its high-purity tin plating over a premium copper-alloy substrate delivers exceptional electrical path stability, minimal contact resistance, and robust long-term defense against fretting corrosion. Requires calibrated automotive F-profile crimping tool configurations to achieve a proper gas-tight core conductor compression without distorting the terminal's precision 1.5mm entry receptacle box or compromising the structural alignment wings.

Technical Attributes:

- Manufacturer Part Number: 7116-4102-02 / 7116410202 (Brand: Yazaki Wiring Systems / Japan Genuine Class)

- Product Series Taxonomy: YES/YESC Kaizen Series Interconnect Family

- System Classification Type: 1.5 x 0.8 Receptacle Profile Layout

- Contact Terminal Type: Female Flat Receptacle Contact / Female Connector Socket

- Mating Blade Window Fitment: Precision-mated to accept 1.50mm nominal blade width x 0.80mm thick male tab pins

- Physical Footprint Dimensions: 15.65mm Overall Terminal Length execution profile

- Base Structural Metallurgy: Premium High-Conductivity Copper-Alloy for maximum spring retention force and current transfer efficiency

- Contact Interface Plating: High-purity Tin-plated (Sn) finish ensuring long-term path defense against oxidation and atmospheric aging

- Target Wire Gauge Section (Metric): Precision optimized for 0.30mm² minimum to 0.50mm² maximum automotive low-voltage cables (Supports thin-wall AVSS, CAVS, and CIVUS wiring types)

- Target Wire Gauge Section (AWG): Form-fitted to cleanly secure standard 22 AWG to 20 AWG vehicle cabled wiring runs

- Crimp Configuration Profile: Standard F-Crimp style layout providing separate wire-core conductor compression and structural insulation barrel grip wings

- Electrical Contact Performance: Engineered to maintain ultra-low contact resistance across continuous severe-duty operational runs; certified for low-voltage signal and targeted control circuit distribution

- Mating Counterpart Interface: Pairs seamlessly inline inside approved housings as the direct female partner to matching male tab terminal part number 7114-4102-02 within the Yazaki YES/YESC Kaizen 1.5 series family

- Companion Sealing Element (For Sealed Cavities): Designed to be crimped over companion individual single-wire silicone seals, notably Yazaki part number 7158-3030-50, to establish full IP-rated waterproof isolation

- Commercial Access: Available as loose individual workshop repair pieces, bulk wholesale packing boxes, or continuous factory strip supply lots. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
