Yazaki 7114-3250 Male 9.5mm Terminal 5.0-8.0mm² | Auto-Click

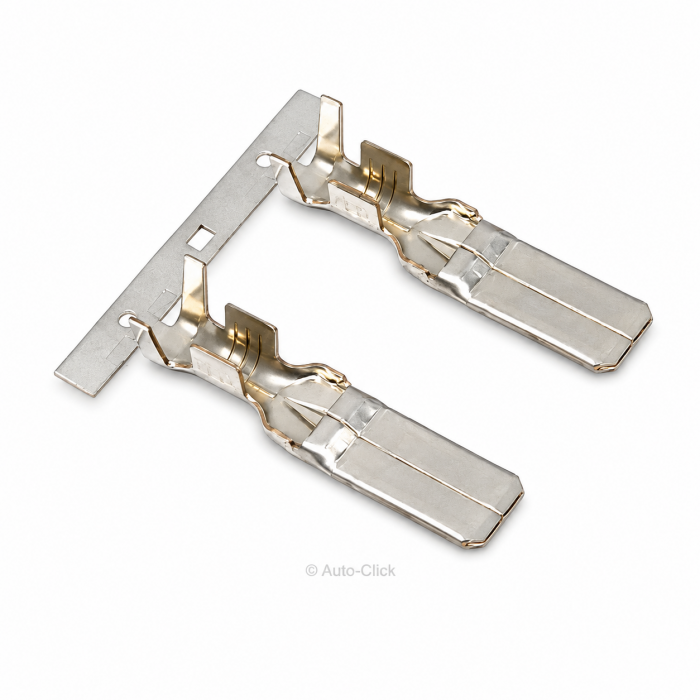

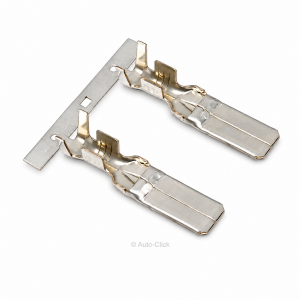

The Component: Genuine Yazaki 7114-3250 high-current automotive male tab blade crimp terminal contact. 58 Series L-Type / Y-Type and 91 Series L-MC Type compatibility matrix / 9.50mm (.375 inch) nominal terminal blade width / Precision-stamped premium copper alloy / High-durability Tin-Plated (Sn) finish / Loose piece configuration / Component Alias Code: 71143250 / Global Order Reference: 7114-3250.

Applications & Fitment: Designed as a factory original equipment (OE) heavy-duty, large-scale electrical link engineered specifically to route high-amperage current profiles across automotive platforms. This 9.5mm flat male tab pin is a critical power distribution staple across global Japanese passenger cars, heavy commercial transport trucks, and industrial machinery networks, operating as the primary core terminal within high-demand electrical nodes. Most commonly encountered as the high-current interface terminal within cabin blower motor networks, main radiator cooling fan assemblies, heavy-duty electrical relay junctions, battery integration blocks, and specialized automotive power splitters.

Sized perfectly to process substantial continuous current paths without risking structural fatigue or localized voltage dropouts, protecting critical power delivery feeds from thermal runaway or cross-circuit degradation. Highly vulnerable to tab neck twisting, wing split fractures, or locking tang damage if field technicians attempt to crimp heavy-gauge copper conductors using generic un-profiled hand pliers rather than calibrated manufacturing die sets, or if forced blindly during housing extractions.

Technical Attributes:

- Manufacturer Part Number: 7114-3250 / 71143250 (Brand: Yazaki Corporation / Genuine Factory Automotive Class)

- Product Series Taxonomy: 58 Series Connectors (L Type / Y Type) & 91 Series (L-MC Type) / YES-YESC Kaizen 9.5x1.2 Family

- Component Typology: Heavy-Duty Male Tab Blade Crimp Terminal Pin Contact

- Terminal Blade Dimensions: Substantial 9.50mm (.375 inch) nominal width by 1.20mm thickness profile matrix

- Base Structural Compound: High-performance, high-conductivity premium copper alloy substrate for maximal elastic safety thresholds

- Surface Treatment / Plating: Full-coverage Tin Plating (Sn) for advanced anti-oxidation barriers and corrosion defense

- Environmental Application: Shared design rated seamlessly for both Unsealed and Sealed waterproof housing paths

- Target Wire Section Profile: Precision optimized for heavy-gauge automotive cables ranging from 5.00mm² up to 8.00mm² cross-sectional area (Comfortably matches 10 AWG to 8 AWG heavy power wiring profiles)

- Electrical Performance Classification: LARGE Category Amperage Rating

- Reference Allowable Current: Capable of processing up to a continuous 60.0 Amps maximum reference current layout

- Low Level Circuit Resistance: High-conductivity specification strictly capped at an initial 2.0 milli-ohm Maximum interface resistance

- Insulation Safety Boundary: Certified to preserve a 100 Megohm Minimum isolation shield at 500VDC across terminal boundaries

- Dielectric Withstanding Voltage: Safely handles up to 1000VAC over a 1-minute continuous operational cycle threshold

- Operational Thermal Window: High-endurance envelope engineered to handle structural cycles ranging from -40°C up to +120°C

- Companion Mating Terminal: Links perfectly with the corresponding 58/91 series 9.5mm female receptacle socket contacts, specifically part number 7116-3250

- Associated Wire Sealing Grommets (If Sealed): Accommodates individual rubber single wire cavity seals, including Yazaki part numbers 7157-3581-80, 7158-3611-60, or 7158-3610-80 depending on target cable jacket outer diameter

- Compatible Housing Systems: Clicks securely into position inside standard high-amperage male blocks, including the Yazaki 7222-4220-30 housing assembly line

- Commercial Access: Available as convenient trade repair strip bundles or loose bulk commercial packs for high-volume trade assembly benches. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
