Auto Click™ partT-166 RoHS
Genuine DEUTSCH OEM · fully traceable
Auto Click™ price
£1.50 each
In Group Stock
Ordering 1,000+? Request an Auto Click™ volume quote
Sold & dispatched by Auto Click™
Free UK delivery £30+
Worldwide shipping daily
30-day returns

Price isn't everything

This is a genuine DEUTSCH part. Cheaper copies sold under the same part number can look identical but may not seal, lock or carry current the same way.

  • Manufacturer-made
  • Traceable
  • Certificate of Conformity on request
See the risks of copy parts →

Product description

0460-220-1231

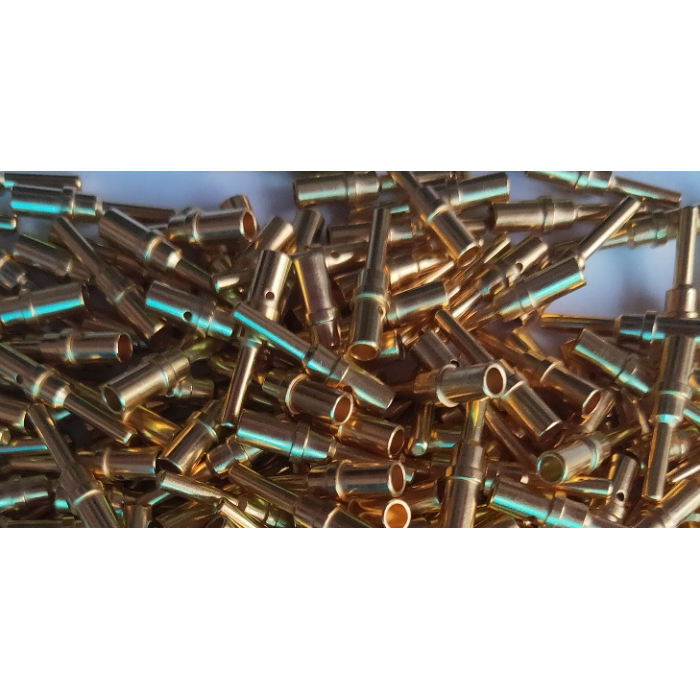

Automotive Terminals, Pin, Pin Diameter 2.39 mm [.094 in], 14 – 12 AWG Wire Size, 2.08 – 3.31 mm² Wire Size, DEUTSCH Common Contact

Product Type Features
Sealable : No
Primary Locking Feature : On the Terminal
Contact Features
Crimp Type : Indent
Typical Current Rating (A): 25
Wire Contact Termination Area Plating Material : Gold
Contact Fabrication : Solid
Contact Size : Size 12
Terminal Type : Pin
Mating Pin Diameter : 2.39 mm [ .094 in ]
Interface Plating : Gold (Au)
Termination Features
Termination Method to Wire & Cable : Crimp
Product Terminates To : Wire
Dimensions
Wire Size (AWG): 14 – 12
Wire Size (mm²): 2.08 – 3.31
Wire Size Search (mm²): 2, 2.5, 3
Wire Size Search (AWG): 12, 13, 14
Usage Conditions
Insulation Option : Uninsulated
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
Compatible With Wire Base Material : Copper
Packaging Features
Packaging Method : Box
Packaging Quantity : 1250
