1928404195 / 1 928 404 195
· BOSCH · Our Part Number: 89-AC001 ·
| Quantity | Unit Price | Saving |
|---|---|---|
| 10+ | £36.00 |

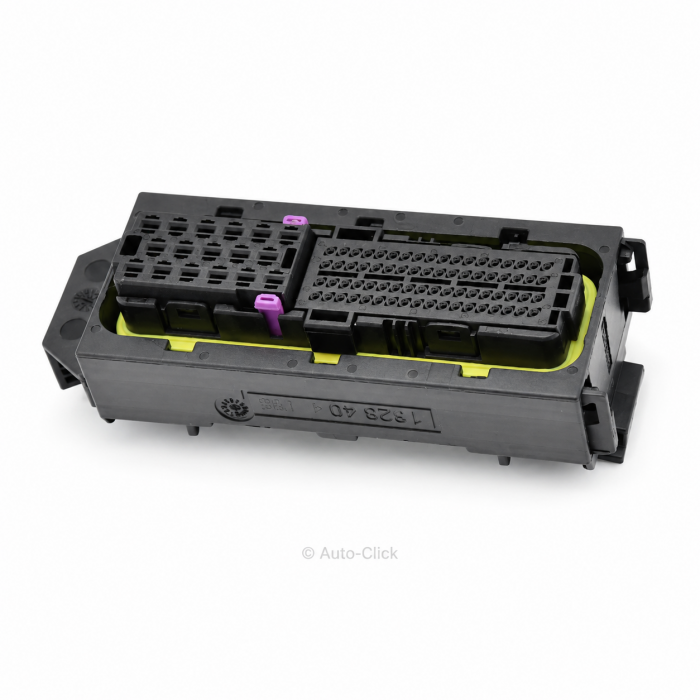

Bosch 1928404195 141P EMS Series 89-Way Sealed Female ECU Connector Housing
Terminals not included
Restore absolute factory data fidelity and severe-duty environmental defense to your central engine control module with the genuine Bosch 1928404195 89-way female automotive connector. Precision-molded to elite Tier-1 original equipment automotive engineering standards by Bosch, this high-density 89-pin carrier housing belongs to the specialized 141P Engine Management System (EMS) interconnect family. Outfitted with an integrated internal high-compression silicone face seal and individual cable-entry tracks, it establishes a robust, waterproof engine bay barrier that completely isolates low-signal telemetry from high-pressure steam cleaning, engine oil pooling, fuel vapors, and aggressive atmospheric salt spray.
The 1928404195 hybrid housing architecture is molded from premium glass-fiber reinforced polyamide (PA66 GF), providing exceptional structural rigidness and defense against thermal stress cycling from -40°C up to +105°C. To manage the massive mating insertion forces required for an 89-position terminal block, the housing incorporates a high-leverage integrated mechanical locking lever assembly that guarantees perfect pin-grid tracking and locking pull-down when seating into the ECU frame. The internal 89-cavity matrix utilizes a mixed terminal pitch built for dual-contact configurations, layout-mapped to house high-density Bosch BMK 0.6mm female signal terminals alongside heavy-gauge Bosch BDK 2.8mm power supply terminals. Extensively relied upon across global passenger and heavy commercial diagnostic networks as the foundational main wiring harness plug for complex electronic control units, this authentic replacement component allows wiring harness builders, tuning shops, and fleet engineers to execute clean, zero-resistance master loom replacements right on the build bench.
### Engineering Specifications & Technical Attributes:
* **Manufacturer Part Number:** 1928404195 (Alternative: 1 928 404 195)
* **Component Type:** 89-Way Female Device Carrier / ECU Plug Housing Block
* **Product Series Taxonomy:** 141P EMS Interconnect Family
* **Number of Signal/Power Cavities:** 89 Pin Positions
* **Dual-Terminal Layout Profile:** Mixed grid designed for BMK 0.6mm and BDK 2.8mm flat socket contacts
* **Locking Architecture:** High-leverage integrated structural mechanical locking lever frame
* **Sealing Classification:** Environmentally Sealed / Waterproof Configuration
* **Material Substrate:** Structurally rigid, heat-stabilized Polyamide (PA66 GF)
* **Structural Companionship:** Accepts Bosch 1928404196 left-side exit or 1928404197 right-side exit rear protective wire cover hoods
* **Commercial Access:** Tiered automated B2B trade volume price breaks apply instantly inside your basket for custom engine tuners, automotive wire-harness factories, and commercial workshop operations.
