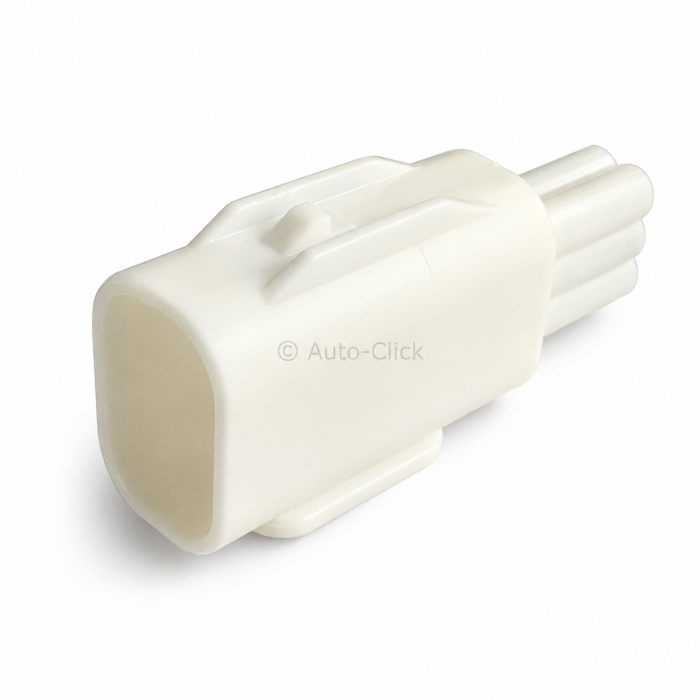

Sumitomo 6188-0706 TS Sealed Series 6-Way Male Housing 0.64mm

The Component: Genuine Sumitomo high-reliability automotive interconnect housing shell. TS Sealed Series taxonomy / 6-way multi-pin circuit distribution matrix / Male pin carrier wire-to-wire inline plug frame / 0.64mm (025 nominal) miniaturized micro-blade contact architecture / High-grade natural tone PBT engineering thermoplastic construction / Dual-stage terminal tracking retention matrix with secondary integrated lock / Advanced environment-proof silicone wire seals / Parking sensor radar module probe interface, camera link, and compact body harness node connection / Component Variant Alias: 6188-0706 / Global Order Reference: 61880706 / Toyota Factory Repair Cross-Reference Interchange: 90980-12381 / 9098012381.

Applications & Fitment: Engineered as a tier-1 original equipment (OE) specification weatherproof 6-way male wire-to-wire terminal housing optimized for compact signal distribution loops across demanding automotive engine compartments, exterior body panels, and driver-assistance arrays. This TS series high-density 0.64mm miniature terminal block is common across modern Japanese and international light vehicle lines—featuring massive, sustained deployment across factory Toyota, Lexus, and Honda electronic control networks, most famously acting as the primary connection interface for reversing radar probes and proximity sensor arrays (such as the Toyota RAV4 and Corolla bumper wire leads). Rated to carry low-voltage signal streams up to 7 Amps continuous per terminal position, this natural PBT composite shell provides superior mechanical shock defense and high thermal rigidity in environment-exposed zones. The precision-engineered cavity arrangement utilizes a tight 3.0mm pitch framework, maintaining a minimal physical installation footprint while supporting total moisture protection when packed with individual wire grommet seals. The housing is designed to serve as the definitive inline male plug side, sliding seamlessly into and clipping securely inside its matching female companion socket framework to prevent disconnect under extreme vibration profiles. Essential inventory component for professional auto-electrical engineers, collision damage repair technicians, and performance loom builders overhauling factory bumper-harness segments, building bespoke parking sensor sub-assemblies, or tracing high-frequency data lines back to central control units.

Technical Attributes:

- Manufacturer Part Number: 6188-0706 / 61880706 (Brand: Sumitomo / Made in Japan Component Class)

- Product Series Taxonomy: TS Sealed Series Mini Interconnect Family

- Interconnect Gender Geometry: Male Inline Terminal Housing Carrier Block (Plug Frame)

- Cavity Configuration Matrix: 6 Position / 6-Way Circuit Layout Dual Row Array

- Nominal Mating Blade Size: 0.64mm (.025 inch nominal blade profile width)

- Center-to-Center Cavity Pitch: 3.0mm line spacing matrix

- Base Shell Structure Material: High-grade Polybutylene Terephthalate (PBT) compound substrate

- Factory Shell Coloration: Natural (Translucent Off-White / Cream)

- Toyota Service Assembly Equivalent Interchange: 90980-12381 / 9098012381

- Environmental Protection Rating: IP-Rated Weatherproof Sealed Connection Framework (Requires individual wire seals or cavity block plugs)

- Core Electrical Circuit Limitation: 7.0 Amps maximum benchmark limit per path (subject to ambient thermal profiles and installed wire gauge)

- Initial Interface Contact Resistance: Ultra-low 8mΩ maximum contact threshold pathing (16mΩ max following lifecycle durability stress testing)

- Minimum Mechanical Insulation Resistance: 100MΩ Minimum at operating capacity

- Maximum Allowed Path Leakage Current: Strictly bounded below 50μA max

- Companion Mating Socket Interface: Specs out perfectly for inline docking with genuine Sumitomo TS sealed series 6-way female socket receptor frames (Part Reference: 6189-1142)

- Compatible Internal Contact Pin Series: Accommodates genuine Sumitomo 0.64mm TS sealed male pin terminals (such as volume repair reference numbers 8100-3617 or 8100-3708, processing standard 0.22mm² to 0.50mm² / 24-20 AWG automotive wires)

- System Moisture Seals & Blanking Accessories: Accepts Sumitomo TS 025 silicone wire grommets (including Reddish Brown 7165-0796 for 1.4mm-1.5mm wire diameters or Violet 7165-1312 for thin-wall CHFUS lines) and Light Gray blind cavity blocking seals (Part Reference: 7165-0797)

- Trade Packaging Logistics: Available across your branch portal as individual loose housings, comprehensive technical workspace service kits (housing, terminals, and matching gaskets complete), or whole trade master inner cartons. Wholesale discount price breaks calculate automatically at terminal checkout for commercial accounts, motor factors, and independent wire-assembly technicians.
