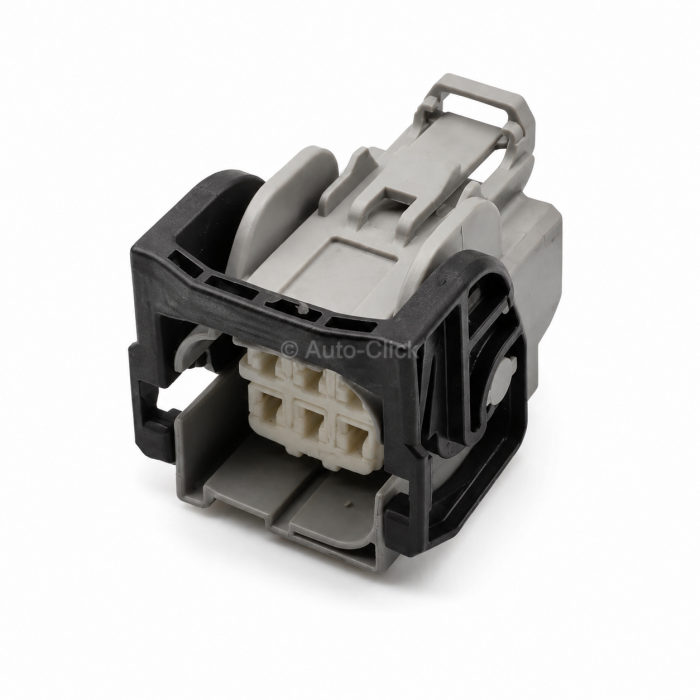

The Component: Genuine Toyota high-performance sealed female receptacle connector plug housing. Toyota Electronic Sensory Interconnect taxonomy / 6-position dual-row female casing / Standard Keying Profile (Light Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof IP Rated / 2x3 Matrix Layout / Female Electronic Accelerator Pedal, Fly-By-Wire Throttle Position, and Common-Rail Diesel Injector Loom Plug / Component Variant Alias: 90980-12656 / Global Order Reference: 9098012656).
Applications & Fitment: Engineered as a premium, heavy-duty original equipment (OE) specification wire-to-device waterproof connection plug designed explicitly for ultra-precise cockpit driver control signaling, electronic fly-by-wire accelerator pedal position sensor (APPS) tracking, and high-exposure common-rail diesel powertrain fuel injector lines. This 6-pin female socket block is an absolute wiring loom repair, electronic throttle retrofitting, and harness reconstruction staple across modern international passenger, 4x4 commercial, and shared global engine platforms—most extensively integrated within late-model Toyota, Lexus, and Volvo factory vehicle networks (including recent generation multi-valve diesel engines and heavy-duty utility chassis). It is standardly deployed across critical mechanical interface zones, serving as the primary factory connector block plugged directly onto the integrated dashboard foot-pedal potentiometers, electronic steering link modulators, and cylinder-head mounted fuel distribution units. It features a robust exterior locking shroud mechanism with an integrated positive-engagement top thumb release clip, establishing an ultra-low tolerance, highly stable mechanical hold that completely isolates sensitive analog data signals from intense cockpit floorboard vibrations, hard cornering forces, and extreme localized floorboard heat cycling. Engineered to conform to rigid tier-1 automotive manufacturing guidelines, its heavy-wall internal 2x3 cavities are designed to shield and compress micro series female receptacle crimp contacts. Paired with internal silicone perimeter waterproofing rings and single-wire elastomeric cable gates, it forms an absolute moisture-tight barrier against dirt ingress, water tracking, interior detailing fluid exposure, and severe under-hood engine bay washdowns. Highly critical service item for auto-electrical workshops, professional vehicle builders, and commercial fleet operators overhauling intermittent throttle pedal signals or fractured engine bay injector leads.
Technical Attributes:
- Manufacturer Part Number: 90980-12656 / 9098012656 (Brand: Toyota / Japan Genuine Automotive Component Class)
- Product Series Taxonomy: Toyota Sealed Micro Interconnect Family
- Configuration: 6-Position / 6-Way Female Receptacle Plug, Dual-Row 2x3 Matrix Layout
- Contact System Terminal Envelope: Custom-engineered to shield high-reliability automotive micro series female receptacle crimp terminals
- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom Accelerator Pedal or Powertrain Injector Interface Plug)
- Fastening & Locking Architecture: Features a reinforced top-mounted integrated mechanical thumb release clip lever with an advanced positive dual-axis engagement hold
- Environmental Sealing Level: Complete weather-tight waterproof, dustproof, and fluid isolation utilizing a pre-installed internal perimeter rubber matrix seal and individual single-wire cavity rubber cable gates (SWS)
- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum mechanical structural impact stiffness, high chemical deflection, and robust dimensional thermal memory under-hood
- Color Profile: Factory Standard Light Gray outer housing assembly block with dark contrasting retention clip guides
- Circuit Rating Threshold: Form-fitted for high-integrity low-voltage micro signaling, multi-core position data links, and sensory loops operating securely within sensitive analog current limits
- Wire Gauge Range Accommodation: Form-fitted for standard automotive low-voltage signal cross-sections from 0.22mm² up to 0.50mm² (approximately 24 AWG to 20 AWG thin-wall core lines)
- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine Toyota or compatible open-barrel female micro crimp sockets (requires individual cavity single-wire rubber cable seals to preserve full waterproof isolation)
- Mating Counterpart Interface: Pairs seamlessly directly onto factory device headers (including genuine Toyota electronic foot-pedal assemblies and matching powertrain injector ports)
- Commercial Access: Available as loose individual housing shells, convenient trade-pack workshop refill boxes, complete field repair kits containing matched terminals/seals, or bulk trade logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, auto-electrical specialists, and trade stockists.
