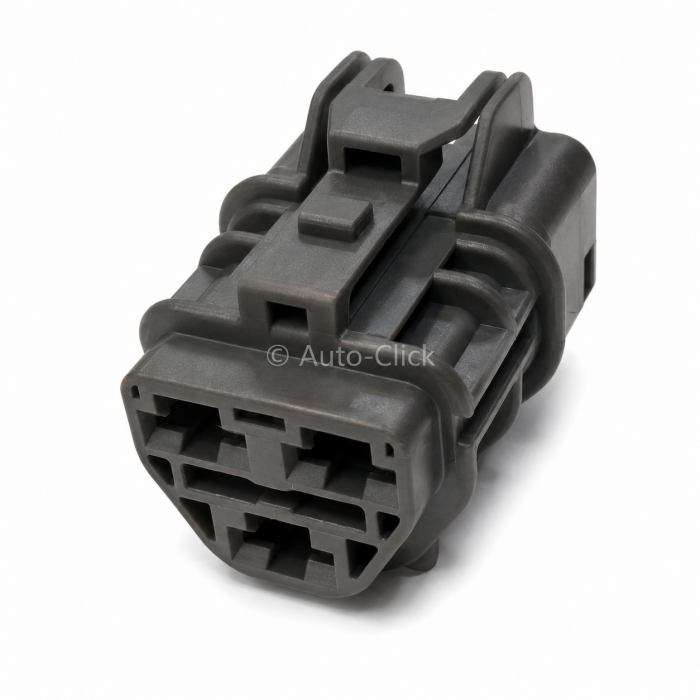

Yazaki 7123-6234-40 3-Way Female 58 Connectors X Type Housing

The Component: Genuine Yazaki high-performance sealed female flat contact receptacle connector plug housing. 58 Connectors X Type Heavy-Duty Sealed Series taxonomy / 3-position multi-row female casing / Standard Keying Profile (Industrial Gray Housing Shroud / Premium Heat-Stabilized PBT / Sealed Waterproof IP Rated / Multi-Row 3-Pole Grid Layout / Female High-Current Alternator, Fuel Pump, Window Regulator, and Main Power Distribution Loom Plug / Component Variant Alias: 7123-6234-40 / Global Order Reference: 7123623440).

Applications & Fitment: Engineered as a premium, high-current original equipment (OE) specification wire-to-wire or wire-to-device waterproof connection plug designed explicitly for heavy-load automotive power tracks, high-output auxiliary assemblies, and exterior-exposed chassis supply loops. This 3-pin female socket block is an absolute wiring loom repair, powertrain conversion, and commercial vehicle fleet harness reconstruction staple across prominent Japanese passenger, 4x4 utility, and transport platforms—most extensively integrated within factory Toyota, Lexus, Nissan, and Mitsubishi electrical system networks. It is standardly deployed across high-demand current transfer zones, serving as the main factory connector block for fuel pump assemblies, wiper motor linkages, electronic window regulators, and exterior lighting supply relays.

It features a robust, integrated mechanical top thumb-release locking clip mechanism, establishing a low-tolerance, positive engagement hold highly resilient to intense chassis vibrations, heavy under-chassis road spray, engine compartment fuel vapor exposure, and winter road salt tracking. Engineered to conform to rigid tier-1 automotive manufacturing guidelines, its compact heavy-wall internal grid cavities feature a 10.4mm horizontal pitch and 8.55mm row spacing designed to house and protect 6.3mm (.250 inch) nominal flat box female receptacle terminals (such as Yazaki 7116 series contacts). Paired with its matching independent rear TPA locking retainer, internal perimeter waterproofing rings, and individual single-wire rubber cable gates, it forms an absolute weather-tight, IP-rated barrier against environmental dirt tracking, moisture entry, and high-pressure steam washdowns. Highly critical service item for auto-electrical workshops, professional diagnostic garages, and commercial vehicle body builders overhauling corroded fuel pump plugs, burnt wiring sub-assemblies, or fractured chassis-side power feeds.

Technical Attributes:

- Manufacturer Part Number: 7123-6234-40 / 7123623440 (Brand: Yazaki / Japan Genuine Component Class)

- Product Series Taxonomy: 58 Connectors X Type Sealed Interconnect Family

- Configuration: 3-Position / 3-Way / 3-Pole Female Receptacle Plug, Multi-Row Grid Layout

- Centerline Matrix Pitch: 10.40mm terminal centerline layout spacing pitch with 8.55mm row-to-row spacing configuration

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability 6.3mm (.250 series) nominal heavy-duty female box crimp sockets (accepts Yazaki 7116-2873 and 7116-2874 series contacts)

- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom Device, Sensor, or Inline Mating Interface Plug)

- Fastening & Locking Architecture: Features a reinforced top-mounted integrated mechanical thumb release clip lever paired with a compatible separate rear-loading TPA secondary terminal lock retainer

- Environmental Sealing Level: High-performance waterproof, dustproof, and weather-tight isolation utilizing an inner rubber perimeter interface seal and individual single-wire rubber cavity seals (SWS)

- Base Structural Compound: Premium Heat-Stabilized Polybutylene Terephthalate (PBT) engineering polymer for maximum structural impact stiffness, high chemical deflection, and robust dimensional thermal memory over vehicle service life

- Color Profile: Factory Standard Industrial Gray outer housing block assembly

- Circuit Rating Threshold: Form-fitted for heavy-duty power distribution runs and high-load accessory paths operating safely within a 20 Amp maximum continuous current threshold

- Wire Gauge Range Accommodation: Form-fitted for standard automotive low-voltage cross-sections from 0.50mm² up to 1.25mm² (20-16 AWG) for signal control lines, and up to 2.00mm² to 3.00mm² (14-12 AWG) for primary high-current paths

- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine Yazaki 58 X Type 6.3mm female crimp sockets (typically reference codes 7116-2873 or 7116-2874; requires individual cavity single-wire rubber cable seals to preserve full IP-rated waterproof isolation)

- Individual Wire Cavity Seals (Not Included): Compatible with genuine Yazaki 7157 series elastomeric rubber single-wire seals, including standard references 7157-3568-40, 7157-3570, or 7157-3571-80

- Mating Counterpart Interface: Pairs seamlessly inline inside wire-to-wire extensions as the direct female partner to matching 3-way male Yazaki 58 X Type inline interface housing blocks (including 7222-6234-40 or 7222-6530-40)

- Commercial Access: Available as loose individual housing shells, convenient trade repair field kits containing matched terminals/seals, or bulk trade master logistics runs. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
