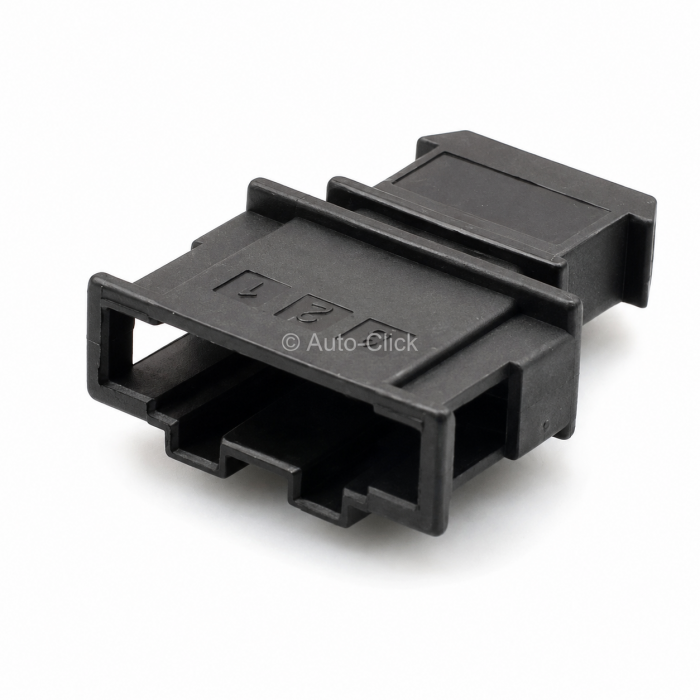

VAG 191972713 3-Way Male 2.8mm Unsealed Connector Housing

The Component: Genuine VAG OEM 3-position unsealed male tab inline housing / Premium VAG 2.8mm series automotive flat plug / 3-way 1x3 single-row inline configuration layout / Integrated secure snap-fit latch locking ramp / Molded from premium, impact-resistant, heat-stabilized PA66 (Nylon 66) / Component Part Number: 191972713 / Alternate Engineering Identifier: 191 972 713.

Applications & Fitment: Reliable, unsealed wire-to-wire electrical connector interface engineered specifically for interior cabin, boot compartment, dashboard, and dry-zone auxiliary circuits on classic and modern Volkswagen, Audi, Seat, and Skoda vehicle platforms (VAG group). This authentic 3-pin 2.8mm male plug is highly specified for cabin blower fan motors, ignition switches, dashboard instrument clusters, heating and ventilation (HVAC) fan resistors, and high-current interior power supply lines. Molded from high-grade black PA66 nylon, it provides exceptional heat resistance and mechanical durability. Designed to house three 2.8mm wide flat male spade/tab terminals and mate perfectly with the corresponding female connector housing (VAG 191972703). A staple stocking item for classic VW/Audi restoration specialists, aftermarket electrical installers, and commercial trade harness builders.

Technical Attributes:

- Manufacturer Part Number: 191972713 / 191 972 713 (Brand: VAG - Volkswagen Audi Group)

- Product Component Classification: 2.8mm Series Male Tab Housing

- Total Position Count: 3-Way / 3-Cavity Male Plug Block

- Cavity Layout Matrix: 1x3 Single-Row Inline Configuration Profile

- Terminal Blade Width Compatibility: 2.8mm Flat Spade Terminal System

- Mating Terminal System: Accepts standard VAG 2.8mm series male crimp spade/tab terminals

- Primary Locking Mechanism: Integrated external snap-fit locking ramp (mates to female plug latch)

- Environmental Protection Rating: Unsealed (Designed for interior cabin/dry-zone applications)

- Structural Material Base: Polyamide 66 (PA66)

- Color Profile: Factory Deep Black (BK)

- Physical Dimensions: Length: 28.50 mm | Width: 26.50 mm | Height: 12.80 mm

- Commercial Procurement Status: Provided as an individual standalone unsealed male outer housing. Crimp male tab terminals and corresponding mating female connector plugs (such as VAG 191972703) are ordered independently. Multi-tier bulk trade volume discounts are applied automatically at final checkout.
