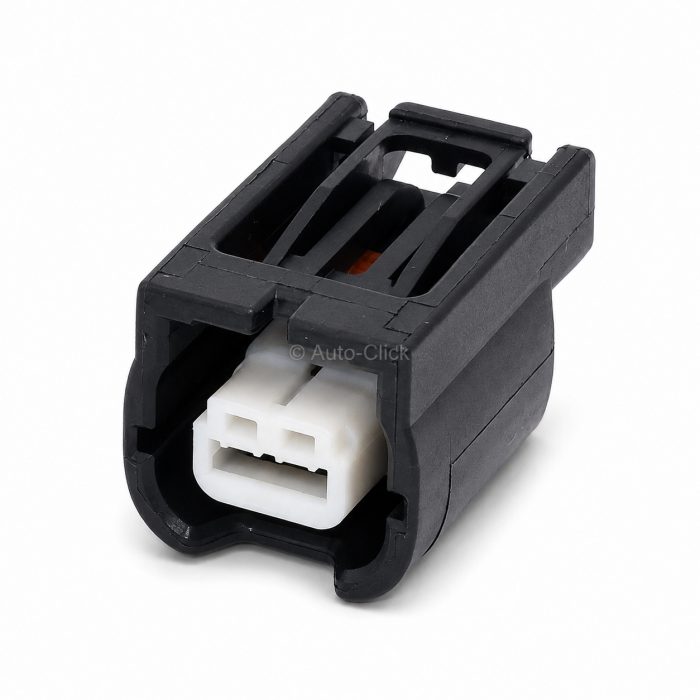

Yazaki HS Series 7283-2090-30 2-Way Female Sealed Connector

The Component: Genuine Yazaki high-durability automotive wire-to-wire or wire-to-device sealed female connector housing. HS Series taxonomy / 025 Series sub-family / 2-Position (2P) single-row female receptacle plug configuration / Premium heat-stabilized PBT automotive engineering polymer construction / Integrated white front-loading Terminal Position Assurance (TPA) lock / High-grade environmental sealing chassis / Component Part Number: 7283-2090-30 / Yazaki Order Reference: 7283-2090-30.

Applications & Fitment: Engineered to meet exact original equipment (OE) manufacturing specifications for widespread deployment across Japanese, domestic, and international automotive platforms. This premium 2-way waterproof female plug is a compact interface component commonly used in low-current sensor networks, mirror assemblies, door lock actuators, and interior/exterior low-voltage lighting systems. Featuring Yazaki's advanced HS-series profile, the housing is built out of robust PBT plastic designed to absorb continuous mechanical vibration and resist thermal deformation. A clear, audible mechanical click confirms secure latch engagement with the corresponding male mating interface. When configured with compatible 0.64mm micro female terminals and individual silicone rubber wire seals, the assembly achieves a highly dependable environmental barrier that isolates delicate signal lines from water, moisture, road brine, and engine fluids. Ideal for precision automotive wiring loom fabrication, direct workshop circuit repairs, and professional motorsport wiring projects.

Technical Attributes:

- Manufacturer Part Number: 7283-2090-30 (Brand: Yazaki)

- Product Series Classification: HS Series / 025 Sealed Family

- Total Number of Cavities: 2 Positions (Single-Row Configuration)

- Housing Connection Architecture: Female Receptacle Plug

- Mating Tab Pin Width: 0.64mm (025 Series)

- Connection System Purpose: Wire-to-Wire / Wire-to-Device / Wire-to-Board Inline Interface

- Locking Protection: Integrated White Front TPA (Terminal Position Assurance) Retainer

- Moisture Protection: Environmentally Sealed (Requires individual single-wire silicone seals)

- Material Composition: High-impact, glass-filled Polybutylene Treatphthalate (PBT)

- Color Layout: Black Outer Housing with White Front Inverted Lock

- Physical Dimensions: Length: 23.75mm | Width: 16.30mm | Height: 15.50mm

- Electrical Specifications: Allowable Current: 3A (Reference) | Insulation Resistance: 100MΩ Min. at 500VDC

- Safe Thermal Range: Minimum -40°C up to Maximum 120°C continuous duty cycle

- Mating Component Cross-Reference: Connects directly with Yazaki HS 2-way male housings (Matching male side reference: 7282-2090-30)

- Trade Packaging Logistics: Available as a standalone loose connector body, as fully comprehensive field repair kits (complete with matching crimp terminals and silicone wire seals), or as pre-wired pigtail assemblies. Automatic volume tier discounts are calculated immediately at the shopping cart checkout for trade auto-electrical supply accounts.
