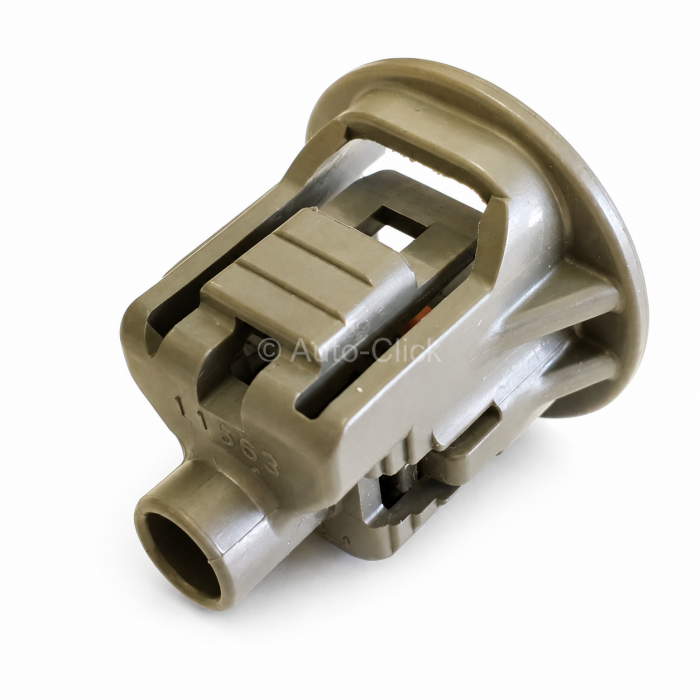

Yazaki 7283-1114-30 1-Way 2.3II(090II) Connector Housing

The Component: Genuine Toyota OEM 1-Position Sealed Female Connector Plug / Yazaki 2.3mm (090) Sealed Series Female Contact Housing / Integrated internal terminal positioning assurance (TPA) mechanism / High-stability automotive grade polymer composite construction / Toyota Part Number: 90980-11363 / Yazaki Part Number: 7283-1114-30.

Applications & Fitment: Engineered as a premium, highly specialized single-circuit interface utilized widely across Toyota, Lexus, and global import vehicle platforms. This authentic 1-way Yazaki-produced sealed housing features a distinctive round outer face collar and is optimized to deliver robust, water-resistant connections for critical engine bay monitoring components and auxiliary electronics.

It is standard equipment for high-vibration sensor linkages and power distribution junctions, most notably serving as the factory-correct interface for oil pressure switches, oil pressure senders, variable valve timing (VVT) control solenoids, single-pin coolant temperature sensors, and select auxiliary under-hood components. The integrated white internal terminal positioning spacer (TPA) ensures the terminal contact is fully driven into position and mechanically locked, preventing terminal back-outs due to severe operational vibration or harsh harness pulling forces. Crucial stocking item for auto-electrical wholesale trade counters, professional engine harness builders, and automotive diagnostic workshops.

Technical Attributes:

- Toyota Part Number: 90980-11363 / 9098011363

- Yazaki Part Number: 7283-1114-30 / 7283111430

- Component Connection Profile: 1-Way / 1-Pin / 1-Position

- Connector Gender Classification: Female Plug Housing

- Terminal Series / Tab Size: 2.3mm (090 Series) Width System

- Sealing Protection Profile: Fully Waterproof Sealed Design (utilizes individual wire seals/cavity plugs)

- Housing Material Base: High-grade heat-stabilized automotive thermoplastic

- Color Configuration: Dark Gray / Black body shell with a highly contrasting white internal lock spacer

- Lock System Profile: Integrated terminal lance support with a secondary white slider lock block

- Procurement Availability: Supplied as an individual bare connector plug housing unit. Corresponding 2.3mm female crimp terminal pins and silicone wire seals are supplied separately. Dynamic bulk volume price scaling applies instantly inside the cart.
