  • 9-2209520-9


9-2209520-9

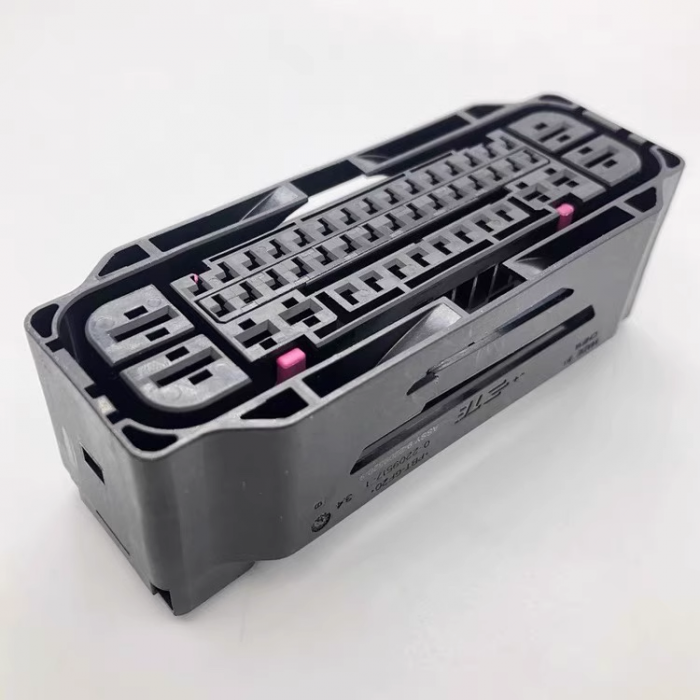

Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 46 Position, Sealable, Black, Signal, MCON Interconnection System

Product Type Features



Connector Shape : Rectangular

Connector System : Wire-to-Board, Wire-to-Device

Connector & Housing Type : Housing for Female Terminals

Sealable : Yes

Primary Locking Feature : Integrated in Housing

Mixed & Hybrid Connector : Yes

Configuration Features



Number of Positions : 46

Body Features



Primary Product Color : Black

Connector & Keying Code : A

Contact Features



Contact Type : Receptacle

Contact Size : 1.2mm, 2.8K, 4.8K

Mating Tab Width (mm): 1.2, 2.8, 5.8

Mating Tab Width (in): .047, .11, .228

Mechanical Attachment



Mating Alignment : With

Mating Alignment Type : Keyed

Strain Relief : Without

Connector Mounting Type : Cable Mount (Free-Hanging)

Terminal Position Assurance : Yes

Housing Features



Housing Material : PBT GF

Usage Conditions



Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120

Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248

Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Terminals not included

Write a review

Please login or register to review


  • Brands TE CONNECTIVITY CONNECTORS 9-2209520-9
  • Auto-Click part number: 46-AC002
  • Availability: In Stock
  • RoHS:
  • Ships from: Our UK warehouse
  • Ship to: Worldwide
  • Shipping options: Royal Mail, UPS
  • Payment options: PayPal, Debit/Credit Card, Bank Transfer
  • Online price £15.30


  • Wholesale Prices

  • Price for 100 or more £8.40
