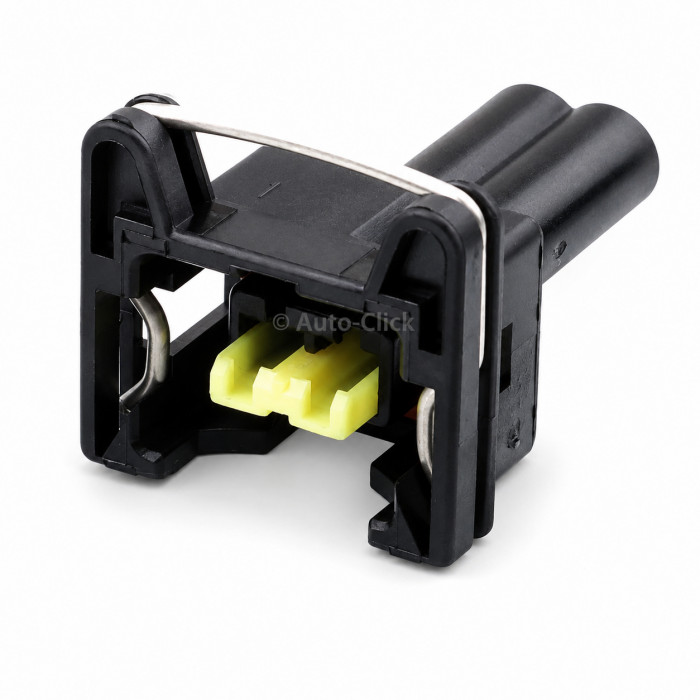

TE Connectivity 85202-1 2-Way Female Junior Power Timer Connector

The Component: Genuine TE Connectivity Junior Power Timer (JPT) series high-performance 2-way female socket connector housing. 2.8mm Interconnect taxonomy / 2-position single-row female casing / Standard Rectangular Keying Profile (Jet Black Housing Shell / Premium Glass-Filled PBT GF30 / Unsealed Wire-to-Wire / 1x2 Quadrant Grid Layout / Female Sensor, Fuel Injector, and Device Repair Plug / Component Variant Alias: 852021 / Global Order Reference: 85202-1).

Applications & Fitment: Engineered as a premium, high-reliability original equipment (OE) wire-to-wire and wire-to-device connection plug designed explicitly for heavy-duty automotive electrical circuits, engine management networks, and industrial wiring harnesses. This 2-pin female housing block is an industry-standard staple across a wide variety of European, British, and global passenger vehicles, commercial machinery, and agricultural equipment platforms. It is widely deployed across critical vehicle sensing and actuator subsystems, serving as a primary factory connector interface for standard fuel injectors, EV1-style components, air temperature sensors, horn triggers, solenoid valves, and fluid level senders. It features an integrated high-stiffness top-mounted metal spring wire locking bail clip latch that seats securely over the mating tab header's retention shoulder, establishing an absolute, low-tolerance interface hold resilient to continuous engine thermal cycling and harsh structural vibrations. Engineered to conform to rigid tier-1 automotive manufacturing guidelines, its internal cavities utilize a precise internal locking lance mechanism to secure contacts cleanly, providing high terminal retention assurance. Highly favored by automotive electricians and harness builders for classic car restorations, vehicle modifications, and high-quality harness repairs.

Technical Attributes:

- Manufacturer Part Number: 85202-1 / 85202-1 (Brand: TE Connectivity / AMP Brand Class)

- Product Series Taxonomy: Junior Power Timer (JPT) Series Interconnect Family

- Configuration: 2-Position / 2-Way Female Receptacle Plug, Single-Row 1x2 Casing

- Profile Alignment: Rectangular body layout with integrated side alignment keys to prevent incorrect mating orientation

- Contact System Terminal Envelope: Custom-engineered to shield high-reliability Junior Power Timer 2.8mm flat receptacle female socket terminals (Accepts standard 2.8mm mating width contacts)

- Connector Style: Receptacle Housing for Female Sockets (Free-Hanging Wire Loom or Direct Device Header Module Interface)

- Fastening & Locking Architecture: Features an integrated positive locking top-mounted metal wire bail clip lever that snaps into place for secure latching

- Environmental Sealing Level: Unsealed / Non-waterproof open design, ideally suited for cabin electronics, protected engine bays, or wrapped main wiring harness trunks

- Base Structural Compound: Premium 30% Glass-Filled Polybutylene Terephthalate (PBT GF30) engineering polymer for maximum rigidity, high dimensional accuracy, and superior heat degradation tracking resistance

- Color Profile: Factory Standard Jet Black housing block assembly

- Circuit Rating Threshold: Form-fitted for automotive low-voltage signaling and micro-power power distribution networks operating up to 12V / 24V DC continuous with a max current rating of up to 30A depending on terminal selection

- Operational Thermal Window: Severe-duty engine and cabin layout certified to maintain material elasticity and clip compliance from -40°C up to +130°C

- Target Female Terminal Contacts (Not Included): Precision optimized to accept genuine TE 2.8mm Junior Power Timer female crimp sockets (Contacts sold separately based on wire cross-section requirements)

- Mating Counterpart Interface: Pairs seamlessly inline or directly to engine modules as the female partner to matching 2-way Junior Power Timer male tab interfaces

- Commercial Access: Available as loose individual housing shells or convenient trade repair connection kits. Tiered B2B wholesale trade volume pricing breaks apply instantly inside your basket for independent garages, loom remanufacturers, and trade auto-electrical stockists.
