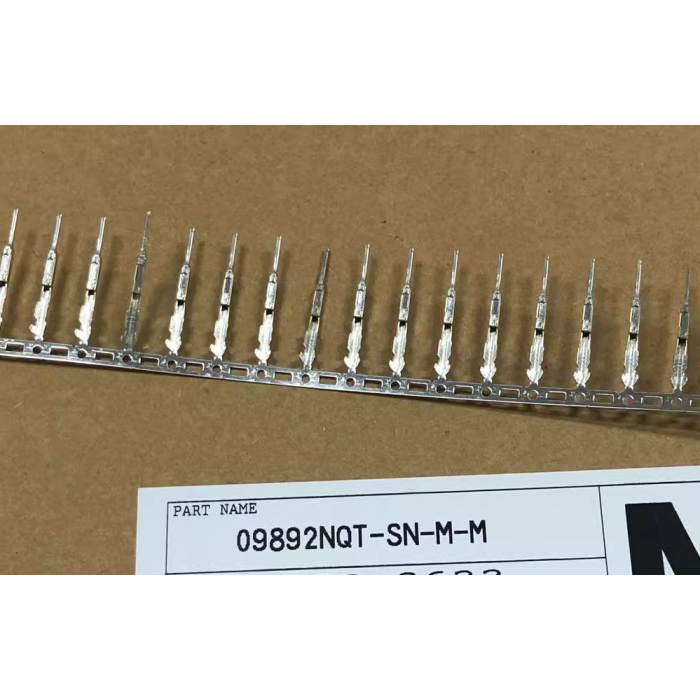

Original Sumitomo 8100-3622

TS series

Terminal For AV Wire

0.64mm(025)

Sealed/Unsealed unsealed

Male/Female M

Tab Size 0.64mm(025)

Size M

Mating parts 8100-3624(TS series)

Applicable wire size

0.22-0.35mm2

Cable overall diameter (mm) 0.95-1.2

Materials Brass

Surface treatment Tin-plated

Contact resistance

Initial

8mΩ Max.

after durability tests

16mΩ Max.

Leak current 3mA Max.

Insulation resistance 100MΩ Min.
